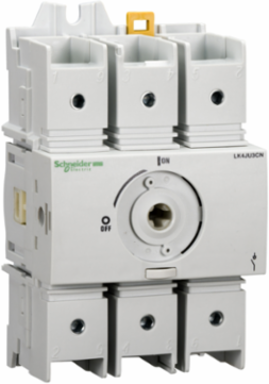

Schneider Electric LK4JU3CN TeSys LK4 Disconnect Switch, 50hp at 600VAC, 3 Pole, 100A Rated, Plate Mount

MPN: LK4JU3CN
PPN: SCH-LK4JU3CN
UNSPSC: 39122233

$245.95

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Crafted by Schneider Electric, this TeSys LK4 Disconnect Switch exemplifies reliability and efficiency for industrial applications. With a robust design capable of handling up to 50 horsepower at 600VAC, it ensures safe and effective operation in high-demand environments. Featuring a 3-pole configuration and a 100A rating, this plate-mounted switch provides essential disconnection capabilities, making it an ideal choice for controlling motor circuits and enhancing safety in electrical installations. Its durable construction is designed to withstand the rigors of industrial use, ensuring longevity and dependable performance.

Documentation & Downloads

Specifications

Key Specifications

Disconnector Device Type	non-fusible disconnect switch
Product Name	TeSys LK
Suitability For Isolation	yes

Product Or Component Type	Disconnect Switch
Range	TeSys

Complementary

[Icw] Rated Short-Time Withstand Current	17.6 kA
Rated Power In W	51 kW 400 V \|\| 63 kW 500 V \|\| 90 kW 690 V
Height	125 mm
Mounting Support	plate
[Ui] Rated Insulation Voltage	750 V
Control Type	rotary handle
Electrical Durability	6000 cycles
Poles Description	3P
[Ie] Rated Operational Current	100 A400 V AC AC-22A IEC \|\| 100 A400 V AC AC-23A IEC \|\| 100 A690 V AC AC-22A IEC \|\| 100 A690 V AC AC-23A IEC \|\| 100 A CSA \|\| 100 A UL
Depth	64 mm

Network Frequency	50/60 Hz
[Ue] Rated Operational Voltage	600 V AC 50/60 Hz
Type Of Operating Handle	external right side \|\| external frontal
Network Type	AC
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC
Connections - Terminals	lugs-ring terminals 1 4-4 mm²
Mechanical Durability	10000 cycles
Rated Power In Hp	20 hp 240 V 53 A AC \|\| 50 hp 480 V 64 A AC \|\| 50 hp 600 V 51 A AC
Width	79.5 mm

Offer Sustainability

Rohs Exemption Information	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
