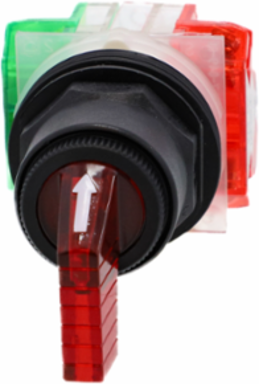

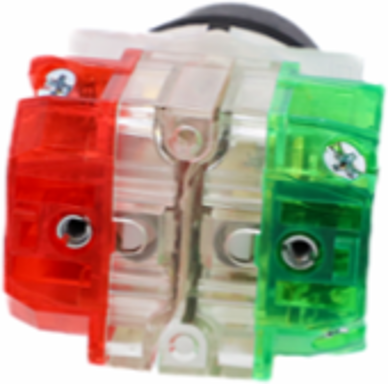

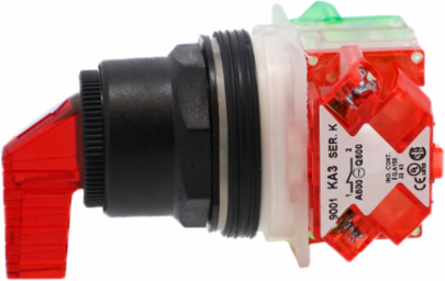

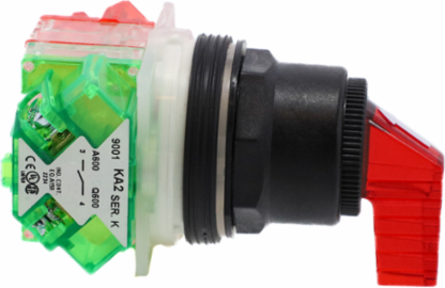

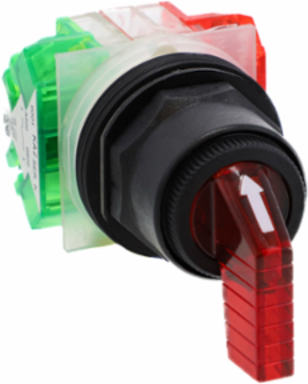

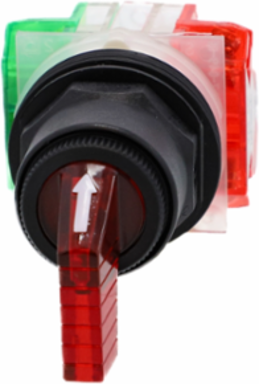

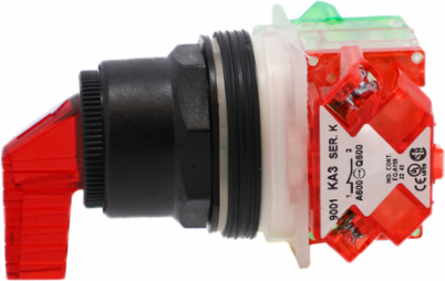

Schneider Electric 9001SKS42FBH21 Selector Switch 30mm 3-Position Stay Put 1 NO + 1 NC IP66

  • MPN: 9001SKS42FBH21
  • UPC: 785901398745
  • PPN: SCH-9001SKS42FBH21
  • UNSPSC: 39122216

CAD

$122.68

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

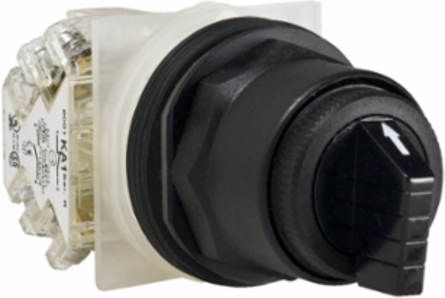

The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This 3 postion non-illuminated selector switch has a plastic ring nut. The selector switch is maintained in all three positions. This selctor switch has a gloved hand black knob. This selector switch has one contact block that has one normally open and the other contact blovck has one normally closed contact. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Features

  • Enhanced operator efficiency
  • Simplicity and speed installation
  • High resistance to corrosion
  • Long-term reliability
  • Wide range of operating temperature from -25°C to 70°C

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico

Physical Attributes

Size30 mm

Important Information Attributes

Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Certificate AgencyCE, CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR
Local Publishable Date2026-08-10
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialplastic
Compatibility Code9001SK
Device Short Name9001SK
Mechanical Durability0.5 Mcycles
Operator Position Information3 positions
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityNo
Type Of Operatorstay put
Nbr. Of Units In Pkg.1
Warranty In Months18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cam Profile2
Contacts Type And Composition1 NO + 1 NC + 3 C/O
Electrical Shock Protection Classclass II conforming to IEC 61140
Mounting Diameter30 mm
Operator Profilelong handle
Product Or Component Typeselector switch
Range Of ProductHarmony 9001SK
Sustainable PackagingYes
Cap/Operator Or Lens Colourblack
Customs Code8536509025

Environment Attributes Main

Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Ip Degree Of ProtectionIP66 IEC 60529, IP65/IP66
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN

General Attributes

Product Or Component Typeselector switch
Range Of ProductHarmony 9001SK

ETIM

ETIM 8EC001029
ETIM 10EC001029
ETIM 9EC001029

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

Overview Attributes

Device Presentationcomplete product
Selector Switch 30mm 3-Position Stay Put 1 NO + 1 NC IP66
Selector Switch 30mm 3-Position Stay Put 1 NO + 1 NC IP66
Selector Switch 30mm 3-Position Stay Put 1 NO + 1 NC IP66
Selector Switch 30mm 3-Position Stay Put 1 NO + 1 NC IP66
