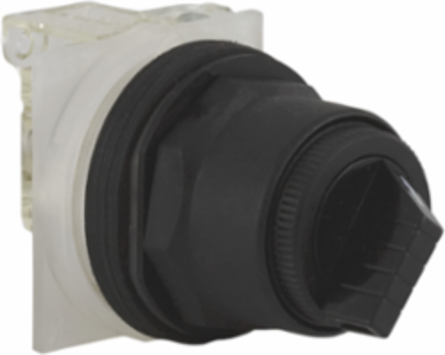

Schneider Electric 9001SKS11BH1 Selector Switch, 30mm, Plastic, Black, 2 Positions, IP66
- MPN: 9001SKS11BH1
- UPC: 785901043386
- PPN: SCH-9001SKS11BH1
CAD
$123.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, thanks to its IP66 making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typeselector switch
Complementary
- Contacts Type And Composition
- 1 C/O
- Cam Profile
- 5
- Mounting Diameter
- 30 mm
- Type Of Operator
- stay put
- Size
- 30 mm
Bezel Materialplastic
Operator Position Information2 positions
Operator Profilestandard handle
Cap/Operator Or Lens Colourblack
Device Presentationcomplete product
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120820EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Product Certifications
- CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Protective TreatmentTC
