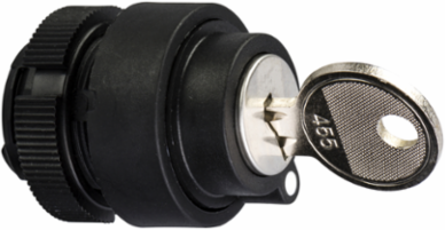

Schneider Electric ZA2BG3 Harmony XAC Black Selector Switch 3 Positions IP65

MPN: ZA2BG3
PPN: SCH-ZA2BG3
UNSPSC: 39122221

$94.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Harmony XAC Black Selector Switch from Schneider Electric is designed with versatility and durability in mind, featuring three distinct positions for enhanced operational control in various applications. With an IP65 rating, this switch is engineered to withstand challenging environments, ensuring reliable performance even in dusty or wet conditions. Its robust design makes it ideal for automation and control systems, offering a practical solution for panel builders and system integrators seeking dependable pilot devices. Whether you're integrating it into complex industrial machinery or simplifying control interfaces, this selector switch combines functionality with ease of use for seamless operation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	50 g

Important Information Attributes

Certificate Agency	CSA C22.2 No 14, EN/IEC 60204-32, EN/IEC 60947-5-1, UL 508
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0429143412
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.2513912481
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308024EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Component Name	ZA2
Mounting Location	front of enclosure
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony XAC
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Database Version	2022-01
Cap/Operator Or Lens Colour	black
Customs Code	8538908180
Functional Unit Description	This key selector switch comes with key pull out position in left position. It has 2 operating positions and operates with a stay-put mechanism. This selector switch provides a versatile interface for controlling machines. It has 1 NO contact with slow-break operation. This is a plastic switch with a metallic-look ring design bezel.It has power consumption of 0.002W with use rate of 72% for a period of 10 years and product is adhering to standardsIEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards .
Functional Unit Unit	unit

Carbon Footprint Of The Distribution Phase A4	0.0174601634, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0483296934, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Marking	unmarked
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	selector switch
Returnability	No
Shock Resistance	100 gn IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.3600954461
Environmental Disclosure	ENVPEP2308024EN
Ip Degree Of Protection	IP65 conforming to IEC 60529
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2308024EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308024EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	XACA
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
