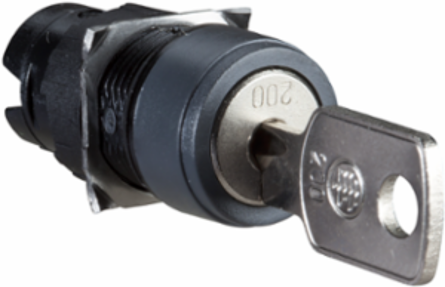

Harmony XB6 16mm Key Selector Switch Head, 2 Position Stay Put
Schneider Electric

Schneider Electric ZB6AGC Harmony XB6 16mm Key Selector Switch Head, 2 Position Stay Put

  • MPN: ZB6AGC
  • PPN: SCH-ZB6AGC

CAD

$58.09

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Harmony ZB6AGC is a selector switch head, 2-position stay put, key operated Ronis 200. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Mexico, United States

Physical Attributes

Cad Overall Depth
55 mm
Cad Overall Width
18 mm
Cad Overall Height18 mm

Important Information Attributes

Vibration Resistance
+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]
0.0033999128, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0029312329, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
kg CO2 eq., 0
Local Publishable Date
2026-01-12
Stocking Flag
N
Weee Scope
Out
Eoli Availability Display
Yes
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Bezel Material
plastic
Device Short Name
ZB6
Key Withdrawal Position
in any position
Operator Position Information
2 positions
Product Availability
Stock - Normally stocked in distribution facility
Protective Treatment
TC
Returnability
Yes
Shape Of Signaling Unit Head
round
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
0.6 kg CO2 eq.
Type Of Operator
stay put
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %
17
Package Weight(Lbs)
26.000 g
Warranty (In Months)
18
Certificate AgencyGOST, CCC, UL, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0471723537
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.5808231631
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2403025EN
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Compatibility CodeZB6
Electrical Shock Protection Classclass II conforming to IEC 61140
Mounting Diameter16 mm
Operator Profileblack key switch
Product Or Component Typehead for key selector switch
Range Of ProductHarmony XB6
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingNo
Type Of Keylockkey 200
Pep CodeENVPEP2403025EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Nema Degree Of Protection
NEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Circularity Profile
ENVEOLI2403025EN
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
Yes
Reach Free Of Svhc
Yes
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.6343266625
Environmental DisclosureENVPEP2403025EN
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2403025EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
head for key selector switch
Range Of ProductHarmony XB6

ETIM

ETIM 8
EC000222
ETIM 9EC000222

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
