Selector Switch Head 30mm Metal Black, 2 Positions, Spring Return
Schneider Electric

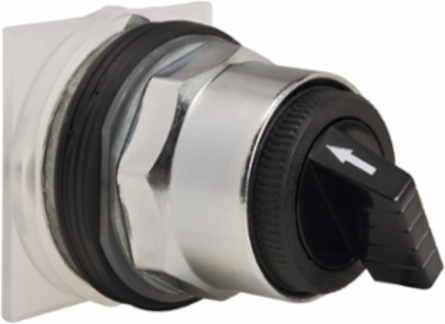

Schneider Electric 9001KS34B Selector Switch Head 30mm Metal Black, 2 Positions, Spring Return

  • MPN: 9001KS34B
  • UPC: 785901322597
  • PPN: SCH-9001KS34B

CAD

$104.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony 9001K, black selector switch with D cam has 2 positions, operates with spring return from right position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony 9001K
Type Of Operator
spring return
Device Short Name
K
Operator Profileblack standard knob
Product Or Component Typehead for selector switch

Complementary

Contacts Type And Composition
without contact block
Cam Profile
4
Mounting Diameter
30 mm
Type Of Operator
spring return
Cap/Operator Or Lens Colour
black
Device Presentation
basic element
Bezel Materialmetal
Operator Position Information2 positions
Operator Profilestandard handle
Returnright to left
Size30 mm

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Environment

Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
