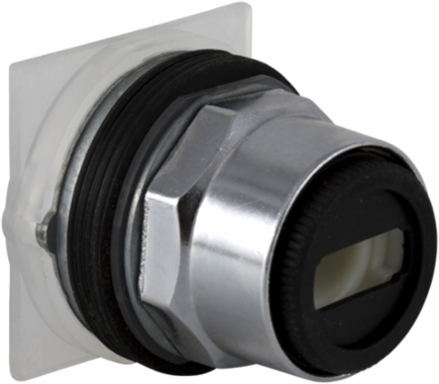

Schneider Electric 9001KS11 Harmony 9001K Metal Selector Switch Head, 30mm, 2 Positions, Stay Put
- MPN: 9001KS11
- UPC: 785901322825
- PPN: SCH-9001KS11
CAD
$55.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied without knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Type Of Operator
- maintained
- Device Short Name
- K
Operator Profilewithout cap without knob
Product Or Component Typehead for selector switch
Complementary
- Contacts Type And Composition
- without contact block
- Cam Profile
- 5
- Mounting Diameter
- 30 mm
- Type Of Operator
- stay put
- Device Presentation
- basic element
Bezel Materialmetal
Operator Position Information2 positions
Operator Profilewithout handle
Size30 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
