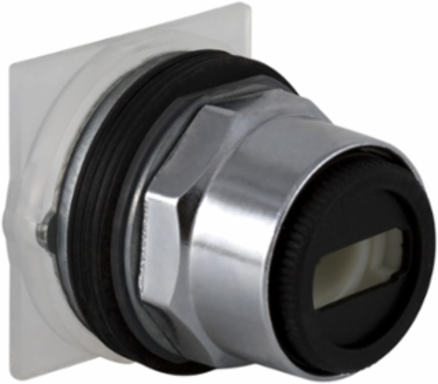

Square D 9001KS59 Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, return both sides to center
Square D 9001KS59 Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, return both sides to center
- MPN: 9001KS59
- UPC: 785901035350
- PPN: SCH-9001KS59
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$91.78/ EA
Description
Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, return both sides to center
Specifications
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || JIS C 852
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass II IEC 61140
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Complementary
- Contacts Type And Composition
- without contact block
- Cam Profile
- 10
- Mechanical Durability
- 500000 cycles
- Operator Profile
- without handle
- Return
- both sides to centre
- Net Weight
- 0.245 kg
- Device Presentation
- basic element
Bezel Materialmetal
Operator Position Information3 positions
Mounting Diameter30 mm
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Size30 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- head for selector switch
Type Of Operatorboth sides to centre spring return
Device Short Name9001KS
