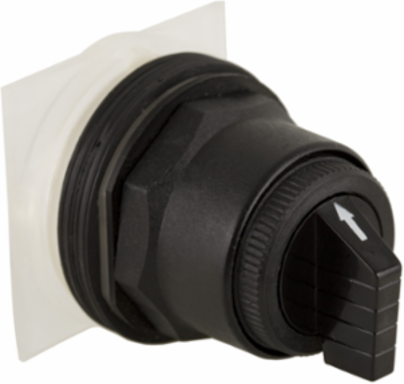

Schneider Electric 9001SKS53B Harmony Selector Switch Head, 30mm, 3 Positions, Black, IP66
- MPN: 9001SKS53B
- UPC: 785901848868
- PPN: SCH-9001SKS53B
- UNSPSC: 39122217
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 3 positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- Improved security thanks to finger-safe contact blocks and light modules
- Robustness to withstand the harshest environments
- Easy, secure mounting system
- Automatic self-grounding operators without additional wiring
- A large plastic set of accessories to customize your product
- Single screw Contact Block Fastening
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Size | 30 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03 |
| Local Publishable Date | 2026-03-25 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Bezel Material | plastic |
| Compatibility Code | 9001SK |
| Device Short Name | 9001SK |
| Mechanical Durability | 0.5 Mcycles |
| Operator Position Information | 3 positions |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Return | both sides to centre |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cam Profile | 3 |
| Contacts Type And Composition | without contact block |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Mounting Diameter | 30 mm |
| Operator Profile | standard handle |
| Product Or Component Type | head for selector switch |
| Range Of Product | Harmony 9001SK |
| Returnability | Yes |
| Type Of Operator | spring return |
| Cap/Operator Or Lens Colour | black |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP65/IP66 |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Nema Degree Of Protection | NEMA 3R/4X/13 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
General Attributes
| Product Or Component Type | head for selector switch |
|---|
| Range Of Product | Harmony 9001SK |
|---|
ETIM
| ETIM 8 | EC001029 |
|---|---|
| ETIM 10 | EC001029 |
| ETIM 9 | EC001029 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
