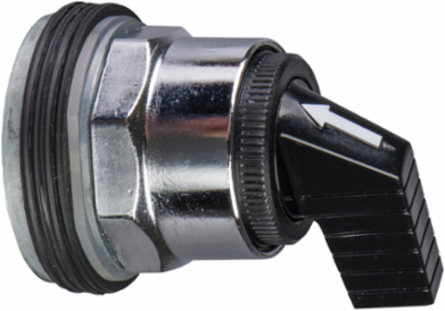

Schneider Electric 9001KS43FB Harmony Selector Switch Head, 30mm, Long Handle, 3 Positions, Metal Body, Black
- MPN: 9001KS43FB
- UPC: 785901050483
- PPN: SCH-9001KS43FB
CAD
$68.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony 9001K, black selector switch with long handle and C cam has 3 positions, operates with a stay-put mechanism. It has a chromium-plated metal bezel. This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- head for selector switch
- Device Short Name
- 9001K
Type Of Operatorstay put
Operator Profileblack long handle
Complementary
- Cam Profile
- 3
- Operator Profile
- long handle
- Cap/Operator Or Lens Colour
- black
- Size
- 30 mm
- Contacts Type And Composition
- without contact block
- Product Compatibility
- 9001KA1 side 1
- Mechanical Durability
- 500000 cycles
Mounting Diameter30 mm
Shape Of Signaling Unit Headoctagonal
Net Weight0.172 kg
Device Presentationbasic element
Bezel Materialmetal
Operator Position Information3 positions
Type Of Operatorstay put
Environment
- Product Certifications
- UL 508 || NEMA
- Standards
- CSA C22.2 No 14 || IEC 60947-5-1 || JIS C 4520 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C 852
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
