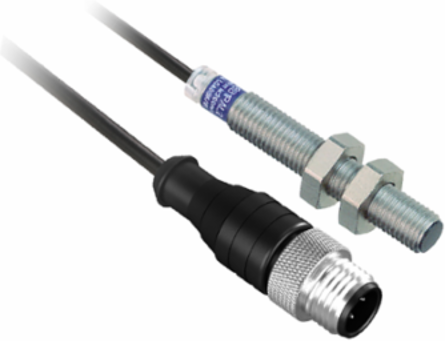

Telemecanique Sensors XS508B1CAL08M12 Inductive proximity sensors XS, inductive sensor XS5 M8, L61mm, stainless, Sn1.5 mm, 12...48 VDC, M12 0.8 m
- MPN: XS508B1CAL08M12
- PPN: TES-XS508B1CAL08M12
- UNSPSC: 41111926
CAD
$150.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, long case, flush mountable sensor. Diameter 8mm threaded M8 x 1. It features a stainless steel (grade 303) case and a remote M12 connector. It has a sensing distance of 1.5mm. Two-wire, DC supply, 12V to 48V, NO terminals 1 and 4.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | remote male connector M12, 4 pins |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Inductive proximity sensors XS |
| Sensor Name | XS5 |
| Size | 51 mm |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Body Type | fixed |
| Sensor Type | inductive proximity sensor |
| Switching Capacity In Ma | 1.5...100 mA DC overload and short-circuit protection |
| Output Circuit Type | DC |
| [Us] Rated Supply Voltage | 12...48 V DC |
|---|---|
| Type Of Output Signal | discrete |
| Cable Length | 0.8 m |
| Material | stainless steel |
| Wiring Technique | 2-wire |
| Series Name | general purpose |
| [Sn] Nominal Sensing Distance | 1.5 mm |
| Detector Flush Mounting Acceptance | flush mountable |
| Sensor Design | cylindrical M8 |
Complementary
| Maximum Delay Response | 0.2 ms |
|---|---|
| Operating Zone | 0-1.2 mm |
| Threaded Length | 42 mm |
| Length | 51 mm |
| Maximum Residual Current | 0.5 mA open state |
| Thread Type | M8 x 1 |
| Maximum Delay Recovery | 0.2 ms |
| Supply Voltage Limits | 10-58 V DC |
| Detection Face | frontal |
| Cable Composition | 2 x 0.11 mm² |
| Status Led | output state 1 LED yellow) |
|---|---|
| Maximum Voltage Drop | <4 V closed) |
| Marking | CE |
| Net Weight | 0.05 kg |
| Switching Frequency | <= 4000 Hz |
| Differential Travel | 1...15% of Sr |
| Maximum Delay First Up | 10 ms |
| Wire Insulation Material | PVC |
| Enclosure Material | stainless steel 303 |
| Front Material | PPS |
Environment
| Product Certifications | CCC || CSA || UL |
|---|---|
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111006EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1110045 |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
