Lexium 28 Servo Motor 130mm 1500W Torque 7.16 N.m
Lexium 28 Servo Motor 130mm 1500W Torque 7.16 N.m
Schneider Electric

Schneider Electric BCH2MM1523CA6C Lexium 28 Servo Motor 130mm 1500W Torque 7.16 N.m

  • MPN: BCH2MM1523CA6C
  • PPN: SCH-BCH2MM1523CA6C

CAD

$1627.66

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

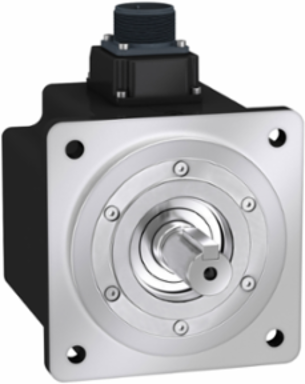

Lexium 28 Servo Motor 130mm 1500W Torque 7.16 N.m

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Switzerland, China, France, Mexico, Sweden

Physical Attributes

Key Width
8 mm
Shaft Length
55 mm
Motor Flange Size130 mm

Complementary Attributes

Maximum Current Irms
20.31 A LXM28... 1.5 kW, 220 V, 21.0 A
Maximum Ambient Air Temperature For Operation
40.0 °C
Maximum Mechanical Speed
3000 rpm
Maximum Permanent Current
6.74 A
Minimum Ambient Air Temperature For Operation
0.0 °C
Line Rated Current6.74 A
Maximum Axial Force Fa200 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr670 N 2000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Coefficient 1 1
-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5
-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Inertia
0.0 kg.cm² of brake, 9.69 kg.cm² of motor
Nominal Torque
7.16 N.m LXM28... 7 A, 220 V, three phase7.16 N.m half speed, 7.16 N.m full speed, 7.16 N.m LXM26D 7 A, 220 V, single phase, 7.16 N.m LXM26D 7 A, 220 V, three phase, 7.16 N.m LXM28... 7 A, 220 V, single phase
Phase
single phase, three phase
Carbon Footprint Of The Distribution Phase [A4]
1.2812149103, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.063289278, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
6 961 kg CO2 eq., 6961.0244899803
Local Publishable Date
2026-01-12
Stocking Flag
Y
Device Type
Motion - drive & motor
Traceability
Yes
Average Life Duration
15 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
4
Function Option Id
ADVANCED
Market Segmentation Id
INDUSTRIAL
Product Kit Identifier
N
Circle Diameter Of The Mounting Holes
145 mm
Coefficient 1 4
7.11E-26 N.m/rpm4
Coefficient 2 0
0 N.m
Continuous Power
1500 W
Derating Altitude Start
1000.0 m
Derating Temperature Start
40.0 °C
Electrical Connection
connector MIL
Holding Brake
without
Minimum Ambient Air Temperature For Operation
0.0 °C
Motor Figures
230.0 V
Mounting Holes Diameter
9.2 mm
Network Number Of Phases
1
Number Of Motor Stacks
3
Peak Nominal Torque
21.48 N.m
Product Or Component Type
servo motor
Returnability
No
Shaft Diameter
22 mm
Sizing Reference
BCH2
Stator Electrical Time Constant
10 ms 20 °C
Stator Resistance
0.64 Ohm 20 °C
Temperature Copper Hot
135 °C
Temperature Magnet Rt
20 °C
Total Lifecycle Carbon Footprint
7 020 kg CO2 eq.
Pep Code
ENVPEP1504002EN
Pep Verification Date
2020-11-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unit
unité (unit)
Energy Consumption On Product Lifetime, In Kwh
14207.716
Energy Model - Installation [A5]
Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage
220 V
Brake Pull-in Power
19.7 W
Maximum [In] Rated Current
6.74 A
Package Weight(Lbs)
9.260 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque7.16 N.m LXM28 7 A, 220 V, three phase7.16 N.m LXM26D 7 A, 220 V, single phase, 7.16 N.m LXM26D 7 A, 220 V, three phase, 7.16 N.m LXM28 7 A, 220 V, single phase
Nominal Speed2000 rpm LXM28... 7 A, 220 V, three phase, 2000 rpm LXM26D 7 A, 220 V, single phase, 2000 rpm LXM26D 7 A, 220 V, three phase, 2000 rpm LXM28... 7 A, 220 V, single phase, 2000 rpm
Peak Stall Torque21.48 N.m LXM28... 7 A, 220 V, three phase21.48 N.m LXM26D 7 A, 220 V, single phase, 21.48 N.m LXM26D 7 A, 220 V, three phase, 21.48 N.m LXM28... 7 A, 220 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.066506491
Carbon Footprint Of The Manufacturing Phase [A1 To A3]57 kg CO2 eq., 56.9127040359
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter110 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current6.18 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia9.7 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance6.4 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant1.16 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total167 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange8 mm
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Ambient Air Temperature For Operation
-20-40 °C, -20-40 °C
Product Compatibility
LXM28... servo drive 1.5 kW, 220 V, three phaseLXM26D servo drive 1.5 kW, 220 V, single phase, LXM26D servo drive 1.5 kW, 220 V, three phase, LXM28... servo drive 1.5 kW, 220 V, single phase
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Circularity Profile
ENVEOLI1504002EN
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2020-11-01
Type Of Verification For The Pep
Independent internal review
Ip Degree Of ProtectionIP50 IM V3, IP65 IM B5, IM V1
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint7020.3482046956
Environmental DisclosureENVPEP1504002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phase
single phase, three phase
Range Of Product
Lexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8
EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power
1500 W LXM28... 7 A, 220 V, three phase1500 W LXM26D 7 A, 220 V, single phase, 1500 W LXM26D 7 A, 220 V, three phase, 1500 W LXM28... 7 A, 220 V, single phase
Output Current 3s Peak21.0 A
