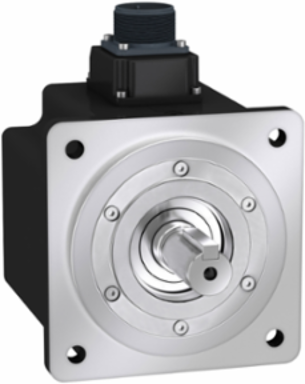

Schneider Electric BCH2MM2020CA6C Lexium 28 Servo Motor 2000W 130mm 9.55 N.m Torque
- MPN: BCH2MM2020CA6C
- PPN: SCH-BCH2MM2020CA6C
CAD
$1788.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and smooth shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 9.95A and a continuous power of 2000W. The shaft dimensions are 22mm (diameter) x 55mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP54 rated product. The length of this product is 187mm and the centering collar dimensions are 8mm (depth) x 110mm (diameter) with 145mm mounting hole. It weighs 9.7kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM28 servo drive motor at 2kW 220V three phase. It supports 130mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Switzerland, China, France, Sweden |
|---|
Physical Attributes
| Motor Flange Size | 130 mm |
|---|
| Shaft Length | 55 mm |
|---|
Complementary Attributes
| Maximum Current Irms | 32.85 A LXM28... 2 kW, 220 V, 33.0 A |
|---|---|
| Maximum Ambient Air Temperature For Operation | 40.0 °C |
| Maximum Mechanical Speed | 3000 rpm |
| Maximum Permanent Current | 11.25 A |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Line Rated Current | 11.25 A |
|---|---|
| Maximum Axial Force Fa | 200 N |
| Maximum Operational Altitude | 1000.0 m |
| Maximum Radial Force Fr | 670 N 2000 rpm |
| Minimum Operational Altitude | 0.0 m |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Coefficient 1 1 | -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm |
| Coefficient 1 5 | -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5 |
| Saturation Coefficient | -3.8243890773E-18, -3.8243890773E-18 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 0.95803 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 51 kg CO2 eq., 51.124 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Manufacturing Carbon Footprint | 51.124 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1504002EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2444 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 110 mm |
| Coefficient 1 2 | 5.62440546E-19 N.m/rpm² |
| Coefficient 1 6 | 3.2E-34 N.m/rpm6 |
| Coefficient 2 1 | 8.75000000000026E-06 N.m/rpm |
| Continuous Stall Current | 9.95 A |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Electrical Connection | connector MIL |
| Holding Brake | without |
| Maximum Operational Altitude | 1000.0 m |
| Minimum Operational Altitude | 0.0 m |
| Motor Voltage Drop Coefficient | 1 |
| Mounting Support | asian standard flange |
| Nominal Torque | 9.55 N.m LXM28... 12 A, 220 V, three phase |
| Number Of Motor Stacks | 4 |
| Peak Nominal Torque | 28.65 N.m |
| Phase | three phase |
| Product Or Component Type | servo motor |
| Returnability | No |
| Shaft Diameter | 22 mm |
| Sizing Reference | BCH2 |
| Stator Electrical Time Constant | 13.24 ms 20 °C |
| Stator Resistance | 0.34 Ohm 20 °C |
| Temperature Copper Hot | 135 °C |
| Temperature Magnet Rt | 20 °C |
| Total Lifecycle Carbon Footprint | 7 858 kg CO2 eq. |
| Pep Code | ENVPEP1504002EN |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 15928.938 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 220 V |
| Brake Pull-in Power | 19.7 W |
| Maximum [In] Rated Current | 11.25 A |
| Package Weight(Lbs) | 10.715 kg |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Distribution [A4] | 48.957 |
| Air Pollution (M3) End Of Life [C1-c4] | 82.9 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] | 16.169 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 51.124 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 39.409 |
| Materials For Energy Recovery (Kg) Total Life Cycle | 0.0707 |
| Materials For Recycling (Kg) End Of Life [C1-c4] | 2.0631 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 1035.3 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 11.55 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] | 16.273 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 37.21 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 62.982 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] | 16.251 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 19.385 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 17.825 |
| Use Of Secondary Materials (Kg) Manufacturing [A1-a3] | 2.266 |
| Water Pollution (M3) Distribution [A4] | 189.26 |
| Water Pollution (M3) End Of Life [C1-c4] | 93.392 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Coefficient 1 3 | -2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3 |
| Nominal Speed | LXM28... 12 A, 220 V, three phase, 2000 rpm |
| Carbon Footprint Of The Distribution Phase [A4] | 1.1509, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.056852, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 7 804 kg CO2 eq., 7804.3316404536 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Distribution Carbon Footprint | 1.1509 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 145 mm |
| Coefficient 1 4 | 7.11E-26 N.m/rpm4 |
| Coefficient 2 0 | 0 N.m |
| Continuous Power | 2000 W |
| Continuous Stall Torque | 9.55 N.m LXM28 12 A, 220 V, three phase |
| Derating Temperature Scale | 40.0 °C |
| Device Short Name | BCH2 |
| Feedback Type | 20 bits single turn absolute encoder |
| Inertia | 0.0 kg.cm² of brake13.49 kg.cm² of motor |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Motor Figures | 230.0 V |
| Mounting Holes Diameter | 9.2 mm |
| Network Number Of Phases | 3 |
| Number Of Motor Poles | 5.0 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 28.65 N.m LXM28... 12 A, 220 V, three phase |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 28 |
| Rotor Inertia | 13.5 kg.cm² |
| Shaft End | smooth shaft |
| Software Version | EIME v5.6.0.1 |
| Stator Inductance | 4.3 mH 20 °C |
| Sustainable Packaging | No |
| Temperature Magnet Hot | 100 °C |
| Torque Constant | 0.96 N.m/A 20 °C |
| Type Of Cooling | natural convection |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Length Total | 187 mm |
| Accuracy Error [Angular] | 0.044 ° |
| Distance Shaft Shoulder-flange | 8 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Manufacturing [A1-a3] | 7309.7 |
| Air Pollution (M3) Installation [A5] | 2.5032 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 423.95 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 9.3087 |
| Global Warming (Kg.Equivalent.Co2) Distribution [A4] | 1.1509 |
| Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] | 13.649 |
| Materials For Energy Recovery (Kg) End Of Life [C1-c4] | 0.0707 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 49.231 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4] | 16.251 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 1072.5 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 11.563 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 62.982 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 972.3 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 11.55 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 19.385 |
| Use Of Secondary Materials (Kg) Total Life Cycle | 2.266 |
| Water Pollution (M3) Manufacturing [A1-a3] | 7151.7 |
| Water Pollution (M3) Installation [A5] | 8.5125 |
| Customs Code | 8501524000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-40 °C, -20-40 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1504002EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | LXM28... servo drive 2 kW, 220 V, three phase |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 7857.6214224536 |
| Environmental Disclosure | ENVPEP1504002EN |
| Ip Degree Of Protection | IP54 IM B5, IM V1IP50 IM V3 |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1504002EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | Lexium 28 |
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 2000 W LXM28... 12 A, 220 V, three phase |
|---|
| Output Current 3s Peak | 33.0 A |
|---|
