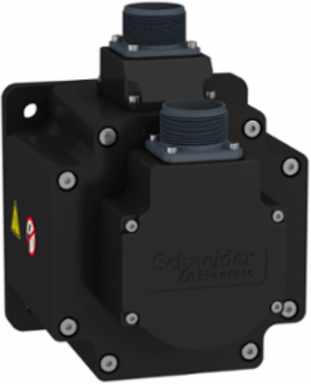

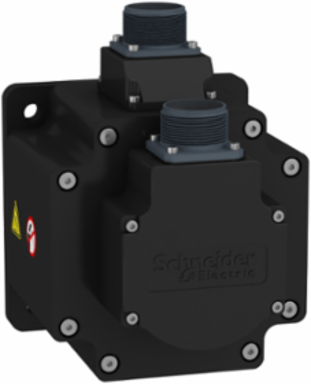

Schneider Electric BCH2MM0613CF6C Lexium 28 Servo Motor 130mm 600W 8mm Key Width 17.19 N.m Peak Torque

  • MPN: BCH2MM0613CF6C
  • PPN: SCH-BCH2MM0613CF6C

CAD

$2056.94

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Lexium 28 Servo Motor from Schneider Electric is engineered to deliver superior performance in automation and motion control applications. With a power output of 600W and a unique 8mm key width, this motor provides exceptional efficiency and precision. It boasts a peak torque of 17.19 N.m, ensuring reliable and dynamic control across various tasks. Ideal for integrating into sophisticated equipment, this servo motor exemplifies Schneider Electric's commitment to innovation and quality in the realm of industrial automation.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, Switzerland, China, France, Mexico, Sweden

Physical Attributes

Key Width8 mm
Shaft Length45 mm
Motor Flange Size130 mm

Complementary Attributes

Maximum Current Irms13.44 A LXM28... 0.6 kW, 220 V, 13.44 A LXM28... 0.6 kW, 110 V, 13.5 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current4.1 A
Minimum Ambient Air Temperature For Operation0.0 °C
Line Rated Current4.1 A
Maximum Axial Force Fa200 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr670 N 1000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM28... 4.5 A, 220 V, three phase, LXM26D 4.5 A, 220 V, single phase, LXM26D 4.5 A, 220 V, three phase, LXM28... 4.5 A, 220 V, single phase LXM28... 9 A, 110 V, single phase, 1000 rpm
Peak Stall Torque17.19 N.m LXM28... 4.5 A, 220 V, three phase, 17.19 N.m LXM26D 4.5 A, 220 V, single phase, 17.19 N.m LXM26D 4.5 A, 220 V, three phase, 17.19 N.m LXM28... 4.5 A, 220 V, single phase17.19 N.m LXM28... 9 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase [A4]1.207670852, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0596563587, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 275 kg CO2 eq., 3274.7156428171
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes145 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power600 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewith
Inertia6.9 kg.cm² of brake6.91 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter9.2 mm
Network Number Of Phases1
Number Of Motor Stacks1
Peak Nominal Torque17.19 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter22 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant12.9 ms 20 °C
Stator Resistance1.93 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint3 331 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh6683.8193
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange8 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501514040
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque5.73 N.m LXM28 4.5 A, 220 V, three phase, 5.73 N.m LXM26D 4.5 A, 220 V, single phase, 5.73 N.m LXM26D 4.5 A, 220 V, three phase, 5.73 N.m LXM28 4.5 A, 220 V, single phase5.73 N.m LXM28 9 A, 110 V, single phase
Nominal Torque5.73 N.m LXM28... 4.5 A, 220 V, three phase5.73 N.m half speed, 5.73 N.m full speed, 5.73 N.m LXM26D 4.5 A, 220 V, single phase, 5.73 N.m LXM26D 4.5 A, 220 V, three phase, 5.73 N.m LXM28... 4.5 A, 220 V, single phase5.73 N.m LXM28... 9 A, 110 V, single phase
Phasesingle phase, three phase
[Us] Rated Supply Voltage220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.0052870852
Carbon Footprint Of The Manufacturing Phase [A1 To A3]54 kg CO2 eq., 53.6458116592
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter110 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current3.77 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque9.6 N.m built-in
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia6.91 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance23.91 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant1.52 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total183 mm
Brake Pull-in Power19.7 W
Maximum [In] Rated Current4.1 A
Package Weight(Lbs)9360 g
Warranty (In Months)18

Environment Attributes Main

Product CompatibilityLXM28... servo drive 0.6 kW, 220 V, three phase, LXM26D servo drive 0.6 kW, 220 V, single phase, LXM26D servo drive 0.6 kW, 220 V, three phase, LXM28... servo drive 0.6 kW, 220 V, single phase, LXM28... servo drive 0.6 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint3330.6340687723
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasesingle phase, three phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power600 W LXM28... 4.5 A, 220 V, three phase, 600 W LXM26D 4.5 A, 220 V, single phase, 600 W LXM26D 4.5 A, 220 V, three phase, 600 W LXM28... 4.5 A, 220 V, single phase600 W LXM28... 9 A, 110 V, single phase
Output Current 3s Peak13.5 A
