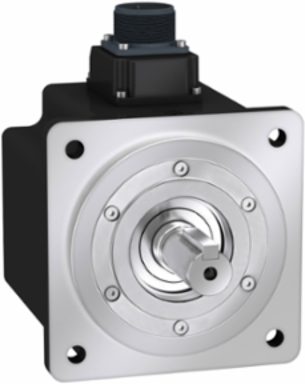

Schneider Electric BCH2MM0523CA6C servo motor BCH, Lexium 28, 130mm, 500W, 6.63kg.cm², with oil seal, with key, straight connection
Schneider Electric BCH2MM0523CA6C servo motor BCH, Lexium 28, 130mm, 500W, 6.63kg.cm², with oil seal, with key, straight connection
- MPN: BCH2MM0523CA6C
- PPN: SCH-BCH2MM0523CA6C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1351.62/ EA
Description
servo motor BCH, Lexium 28, 130mm, 500W, 6.63kg.cm², with oil seal, with key, straight connection
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 145 mm
- Continuous Power
- 500 W
- Product Compatibility
- LXM26D servo drive 0.5 kW, 220 V, single phase || LXM26D servo drive 0.5 kW, 220 V, three phase || LXM28... servo drive 0.5 kW, 220 V, single phase || LXM28... servo drive 0.5 kW, 220 V, three phase || LXM28... servo drive 0.5 kW, 110 V, single phase
- Maximum Radial Force Fr
- 670 N 2000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 6.63 kg.cm²
- Maximum Axial Force Fa
- 200 N
- Holding Brake
- without
- Brake Pull-In Power
- 19.7 W
- Maximum Current Irms
- 9.18 A LXM28... 0.5 kW, 220 V || 9.18 A LXM28... 0.5 kW, 110 V
- Net Weight
- 7 kg
- Stator Inductance
- 7.4 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V || 110 V
- Peak Stall Torque
- 7.16 N.m LXM26D 4.5 A, 220 V, single phase || 7.16 N.m LXM26D 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
- Distance Shaft Shoulder-Flange
- 8 mm
- Key Width
- 8 mm
- Type Of Cooling
- natural convection
- Nominal Speed
- 2000 rpm LXM26D 4.5 A, 220 V, single phase || 2000 rpm LXM26D 4.5 A, 220 V, three phase || 2000 rpm LXM28... 4.5 A, 220 V, single phase || 2000 rpm LXM28... 4.5 A, 220 V, three phase || 2000 rpm LXM28... 9 A, 110 V, single phase
- Stator Resistance
- 0.62 Ohm 20 °C
- Nominal Torque
- 2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
- Continuous Stall Torque
- 2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Maximum Permanent Current3.24 A
Maximum Mechanical Speed3000 rpm
Stator Electrical Time Constant11.94 ms 20 °C
Electrical Connectionconnector MIL
Number Of Motor Stacks1
Back Emf Constant50 V/krpm 20 °C
Centring Collar Depth8 mm
Shaft Length45 mm
Network Number Of Phasesthree phase || single phase
Length147 mm
Centring Collar Diameter110 mm
Motor Flange Size130 mm
Nominal Output Power500 W LXM26D 4.5 A, 220 V, single phase || 500 W LXM26D 4.5 A, 220 V, three phase || 500 W LXM28... 4.5 A, 220 V, single phase || 500 W LXM28... 4.5 A, 220 V, three phase || 500 W LXM28... 9 A, 110 V, single phase
Number Of Mounting Holes4
Shaft Diameter22 mm
Mounting Holes Diameter9.2 mm
Shaft Endkeyed
Feedback Type20 bits single turn absolute encoder
Continuous Stall Current2.89 A
Torque Constant0.83 N.m/A 20 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
