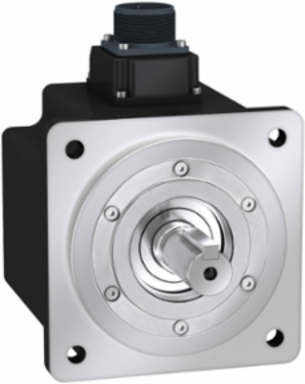

Schneider Electric BCH2MM2023CA6C Lexium 28 Servo Motor, 130mm, 2000W, 9.7kg, IP65, 3000RPM
- MPN: BCH2MM2023CA6C
- PPN: SCH-BCH2MM2023CA6C
CAD
$1999.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque and speed of rotation (2000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 9.95A and a continuous power of 2000W. The shaft dimensions are 22mm (Diameter) x 55mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 187mm (Length) x 130mm (Width), centring collar dimensions are 8mm (Depth) x 110mm (Diameter) with 145mm circle diameter of the mounting hole. It weighs 9.7kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 130mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, France, Mexico, Sweden
Physical Attributes
- Key Width
- 8 mm
- Shaft Length
- 55 mm
Motor Flange Size130 mm
Complementary Attributes
- Maximum Current Irms
- 32.85 A 2 kW, 220 V32.85 A LXM28 2 kW, 220 V, 33.0 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Permanent Current
- 11.25 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current11.25 A
Maximum Axial Force Fa200 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr670 N 2000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Nominal Speed
- LXM26D 12 A, 220 V, three phase, LXM28 12 A, 220 V, three phase, 2000 rpm
- Peak Stall Torque
- 28.65 N.m28.65 N.m LXM26D 12 A, 220 V, three phase, 28.65 N.m LXM28 12 A, 220 V, three phase
- Carbon Footprint Of The Distribution Phase [A4]
- 1.4219808184, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.070242813, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 7 804 kg CO2 eq., 7804.3316404536
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 145 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 2000 W
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- connector MIL
- Holding Brake
- without
- Maximum Operational Altitude
- 1000.0 m
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- asian standard flange
- Number Of Motor Poles
- 5.0
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Product Or Component Type
- servo motor
- Returnability
- No
- Shaft Diameter
- 22 mm
- Sizing Reference
- BCH2
- Stator Electrical Time Constant
- 13.24 ms 20 °C
- Stator Resistance
- 0.34 Ohm 20 °C
- Temperature Copper Hot
- 135 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 7 870 kg CO2 eq.
- Pep Code
- ENVPEP1504002EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 15928.938
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Us] Rated Supply Voltage
- 220 V
- Brake Pull-in Power
- 19.7 W
- Maximum [In] Rated Current
- 11.25 A
- Package Weight(Lbs)
- 11.272 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque9.55 N.m9.55 N.m LXM26D 12 A, 220 V, three phase, 9.55 N.m LXM28 12 A, 220 V, three phase
Nominal Torque9.55 N.m, 9.55 N.m half speed, 9.55 N.m full speed, 9.55 N.m LXM26D 12 A, 220 V, three phase, 9.55 N.m LXM28 12 A, 220 V, three phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1836825818
Carbon Footprint Of The Manufacturing Phase [A1 To A3]63 kg CO2 eq., 63.1656506726
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter110 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current9.95 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Inertia0.0 kg.cm² of brake13.49 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter9.2 mm
Network Number Of Phases3
Number Of Motor Stacks4
Peak Nominal Torque28.65 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia13.5 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance4.3 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.96 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total187 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange8 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7870.1731973394
- Environmental Disclosure
- ENVPEP1504002EN
- Ip Degree Of Protection
- IP50 IM V3IP65 IM B5, IM V1
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityLXM26D servo drive 2 kW, 220 V, three phase, LXM28 servo drive 2 kW, 220 V, three phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 2000 W2000 W LXM26D 12 A, 220 V, three phase, 2000 W LXM28 12 A, 220 V, three phase
Output Current 3s Peak33.0 A
