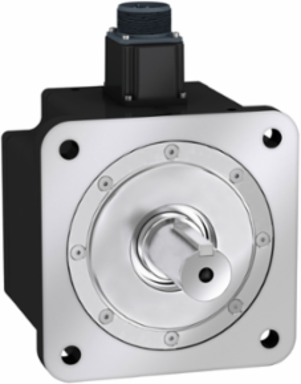

Schneider Electric BCH2MR3022CA6C Servo Motor Lexium 28 180mm 3000W 42.97N.m Torque 3000rpm
- MPN: BCH2MR3022CA6C
- PPN: SCH-BCH2MR3022CA6C
CAD
$2443.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 28 servo motor from Schneider Electric is engineered to deliver high performance in automation and motion control applications. With a robust power output of 3000W and an impressive torque rating of 42.97N·m, this motor is capable of supporting demanding operational requirements while maintaining precision at speeds up to 3000 rpm. Its advanced design and reliable performance make it a crucial component for enhancing efficiency and control in various industrial systems, ensuring that it meets the rigorous standards of modern automation tasks.
Documentation & Downloads
Specifications
Additional
- Power
- 3000 W
- Maximum Speed
- 3000 rpm
- Phase
- Three phase
- Continuous Stall Torque
- 14.32 N.m
- Nominal Output Power
- 3000 W
- Nominal Speed
- 2000 rpm
- Maximum Permanent Current
- 18.8 A
- Back EMF Constant
- 53 V/krpm
- Stator Inductance
- 2.7 mH
- Maximum Radial Force
- 1200 N
- Brake Pull-in Power
- 49.6 W
- Shaft Diameter
- 35 mm
- Feedback Type
- 20 bits single turn absolute encoder
- Mounting Support
- Asian standard flange
- Rotor Inertia
- 53.56 kg.cm²
- Length
- 202 mm
- Centring Collar Depth
- 4 mm
- Mounting Holes Diameter
- 13.5 mm
- Distance Shaft Shoulder-Flange
- 4 mm
- Range Compatibility
- Lexium 28
- Mercury Free
- Yes
- Number Of Motor Stacks
- 2
- Product Or Component Type
- servo motor
- Environmental Disclosure
- ENVPEP1504002EN
- China Rohs Regulation
- X
- Weee
- EU compliant disposal required
- Product Compatibility
- LXM28 servo drive 3 kW, 220 V, three phase
Torque42.97 N.m
Voltage220 V
Continuous Stall Current16.33 A
Peak Stall Torque42.97 N.m
Nominal Torque14.32 N.m
Maximum Current Irms53.9 A
Torque Constant0.88 N.m/A
Stator Resistance0.131 Ohm
Stator Electrical Time Constant20.61 ms
Maximum Axial Force497 N
Ambient Air Temperature for Operation-20 to 40 °C
Shaft Length79 mm
Holding BrakeWithout
Motor Flange Size180 mm
CoolingNatural convection
Centring Collar Diameter114.3 mm
Number of Mounting Holes4
Circle Diameter of Mounting Holes200 mm
Net Weight18.5 kg
IP Degree of ProtectionIP50 IM V3, IP65 IM B5, IM V1
Sustainable Offer StatusGreen Premium product
Device Short NameBCH2
Shaft Endsmooth shaft
Circularity ProfileENVEOLI1504002EN
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above threshold
