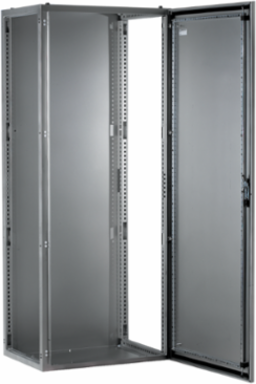

Schneider Electric NSYSFX181240 Stainless Steel Enclosure 1800x1200x400 mm, IP55, IK10

MPN: NSYSFX181240
PPN: SCH-NSYSFX181240
UNSPSC: 39121324

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Crafted with durability in mind, the stainless steel enclosure from Schneider Electric offers robust protection for your critical IT equipment. With dimensions of 1800x1200x400 mm, it is engineered to provide a high degree of safeguard, featuring an IP55 rating which ensures resistance against dust and water ingress. Additionally, the IK10 rating signifies its ability to withstand impact, making it an ideal choice for various industrial and communication applications. This enclosure is well-suited for both automation and control systems, delivering reliable performance in demanding environments.

Features

Stainless steel 304L construction for a rust-resistant and durable enclosure.
Reversible door that can be opened up to 120° for easy access to the equipment.
Easy to work with due to accessibility from both the side and front.
Three-point lock with a 5mm double-bar insert for added security.
Cable gland plate, mounting plate brackets, and the door are removable for maintenance purposes.
Scotch-Brite® brushed surface finish for an attractive appearance.
Suitable for versatile use in harsh environments due to its rugged design.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Bulgaria

Weight	117000 g

Physical Attributes

Enclosure Nominal Height	1800 mm

Enclosure Nominal Width	1200 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Body Type	single piece structure folded and welded, rear panel integrated
Environmental Characteristic	corrosive, specific hygiene
Carbon Footprint Of The End Of Life Phase C1 To C4	244 kg CO2 eq., 244.4146398503291
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 577 kg CO2 eq., 1576.588185819245
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Door Opening Side	reversible 120 °)
Energy Efficiency Optimized	False
Material	structure and door stainless steel 304Lhandle zamakhinge stainless steel
Number Of Doors	front face 2
Product Name	PanelSeT SFX
Range	PanelSeT
Returnability	No
Surface Finish	enclosure Scotch-Brite® brushedhandle painted
Total Lifecycle Carbon Footprint	2 086 kg CO2 eq.
Database Version	2023-02
Certificate Agency	IEC 62208
Customs Code	9403200090
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	97

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 structure2 door with reinforcement frame1 locking system with handle door4 mounting plate bracket, 1 cable gland plate
Carbon Footprint Of The Distribution Phase A4	232.28275398276855, 232 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	32.88141577289337, 33 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Door Type	Solid
Lock Type	3 points lock, handle with 5 mm double-bar insert
Mounting Plate Description	without mounting plate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Removable Parts	door by hingesmounting plate bracket by screwscable gland plate by clips
Software Version	v6.1
Sustainable Packaging	No
Type Of Gland Plate	plain
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	2086.166995425236
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2107011EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2107011EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
