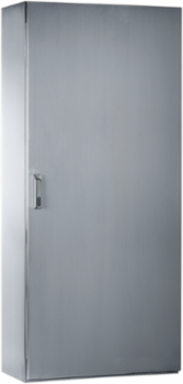

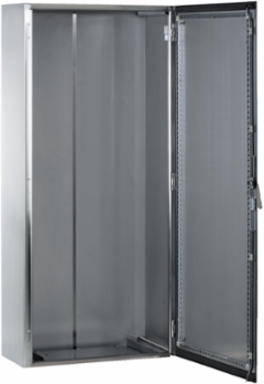

Schneider Electric NSYSMX201040 Spacial SMX 304L Stainless Enclosure 2000x1000x400mm IP55, IK10
Schneider Electric NSYSMX201040 Spacial SMX 304L Stainless Enclosure 2000x1000x400mm IP55, IK10
- MPN: NSYSMX201040
- PPN: SCH-NSYSMX201040
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Spacial SMX stainless steel monobloc enclosure. 1999 x 1000 x 400 mm. Compact floor standing enclosure. No mounting plate included. 2 door(s). Single piece body folded and welded. 3 points lock, handle with 5 mm double-bar insert. Stainless steel 304L, Scotch-Brite brushed finish. Certifications is UL 508, CAN/CSA 22. IP54, IK10. Corrosive, Specific hygiene characteristic.
Specifications
Environment
- Product Certifications
- UL 508 || CAN/CSA 22
- Environmental Characteristic
- corrosive || specific hygiene
- Ip Degree Of Protection
- IP55 IEC 60529
Ik Degree Of ProtectionIK10 IEC 62262
StandardsIEC 62208
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2107011EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Accessibility For Operation
- front
- Body Type
- single piece body folded and welded
- Material
- body and door stainless steel 304L || handle zamak || hinge stainless steel
- Lock Type
- 3 points lock, handle with 5 mm double-bar insert
- Net Weight
- 126 kg
- Mounting Plate Description
- without mounting plate
Removable Partsdoor by hinges || mounting plate bracket by screws || cable gland plate by clips
Type Of Gland Plateplain
Surface Finishenclosure Scotch-Brite® brushed || handle painted
Door Typeplain
Door Opening Sidereversible 120 °)
Number Of Doorsfront face 2
Specifications
- Installation Accessory Type
- floor-standing
- Product Name
- Spacial SMX
- Enclosure Nominal Height
- 2000 mm
- Device Application
- multi-purpose
- Range
- Spacial
Product Or Component Typecompact enclosure
Device Composition1 body || 2 door || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket
Enclosure Nominal Depth400 mm
Enclosure Nominal Width1000 mm
