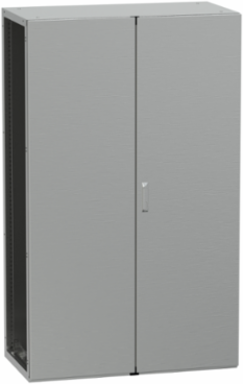

Schneider Electric NSYSFX201260 Spacial SFX Stainless Steel Enclosure 2000x1200x600mm, IP55
- MPN: NSYSFX201260
- PPN: SCH-NSYSFX201260
- UNSPSC: 39121324
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYSFX201260 Spacial SFX Stainless Steel Enclosure is designed for robust protection and versatility in demanding environments. Crafted from high-quality stainless steel, this enclosure measures 2000x1200x600mm and features an IP55 rating, ensuring reliable resistance against dust and water ingress. Ideal for automation and control applications, as well as data and communication installations, it provides a secure and durable solution for housing critical electrical components. Whether you're setting up a complex IT infrastructure or managing industrial controls, this enclosure combines advanced engineering with practical functionality to meet the challenges of modern environments.
Features
- Stainless steel floor-standing enclosure for versatile applications
- Resists water and dust with IP55 rating (IEC 60529)
- High impact resistance with IK10 (IEC 62262)
- Doors can open up to 120° for easy equipment access
- Three-point lock with handle and double-bar insert for security
- Doors, cable gland plate, and mounting plate brackets removable for maintenance
- Reversible door opening side for convenience
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Bulgaria |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 structure2 door with reinforcement frame1 locking system with handle door4 mounting plate bracket, 1 cable gland plate |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Door Opening Side | reversible 120 °) |
| Material | structure and door stainless steel 304Lhandle zamakhinge stainless steel |
| Number Of Doors | front face 2 |
| Product Name | PanelSeT SFX |
| Range | PanelSeT |
| Returnability | No |
| Type Of Gland Plate | plain |
| Customs Code | 9403200090 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Environmental Characteristic | corrosive, specific hygiene |
| Local Publishable Date | 2025-07-10 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Energy Efficiency Optimized | False |
| Mounting Plate Description | without mounting plate |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | suitable enclosure |
| Removable Parts | door by hingesmounting plate bracket by screwscable gland plate by clips |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2107011EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2107011EN |
General Attributes
| Product Or Component Type | suitable enclosure |
|---|
ETIM
| ETIM 8 | EC000261 |
|---|---|
| ETIM 10 | EC000261 |
| ETIM 9 | EC000261 |
|---|
