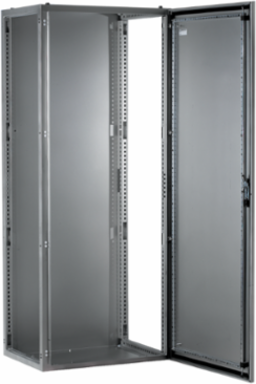

SFX 304L Stainless Steel Enclosure, H2000xW600xD500mm, IP66, IK10
Schneider Electric

Schneider Electric NSYSFX20650 SFX 304L Stainless Steel Enclosure, H2000xW600xD500mm, IP66, IK10

  • MPN: NSYSFX20650
  • PPN: SCH-NSYSFX20650
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
  • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This stainless steel enclosure from Schneider Electric is crafted to provide robust protection for sensitive equipment in demanding environments. With a durable design suitable for industrial applications, it features an IP66 rating ensuring complete protection against dust and powerful water jets, while the IK10 rating signifies its ability to withstand significant impacts. Its spacious dimensions of 2000 mm in height, 600 mm in width, and 500 mm in depth allow for ample storage of essential components, making it an ideal choice for automation and control setups as well as data and communication systems. Designed to meet the rigorous needs of modern IT enclosures and racks, this enclosure offers a practical solution for safeguarding equipment in various settings.

    Documentation & Downloads

    Specifications

    Additional

    Environmental Characteristic
    specific hygiene, corrosive
    IK Degree of Protection
    IK10 IEC 62262
    Net Weight
    90 kg
    Installation
    floor-standing
    Door Opening Side
    reversible 120°
    Gland Plate Type
    plain
    Standards
    IEC 62208, NEMA 4X
    Body Type
    rear panel integrated, single piece structure folded and welded
    Mounting Plate Description
    without mounting plate
    Country of Origin
    BG
    IP Degree of ProtectionIP66 IEC 60529
    Materialstainless steel 304L structure and door, zamak handle, stainless steel hinge
    Dimensions2000 mm H x 600 mm W x 500 mm D
    Number of Doors1 front
    Lock Type3 points lock, handle with 5 mm double-bar insert
    Surface FinishScotch-Brite brushed enclosure, painted handle
    CertificationsUL
    Accessibility For Operationside, front
    Device Applicationmulti-purpose
