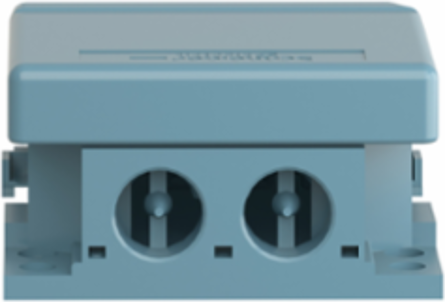

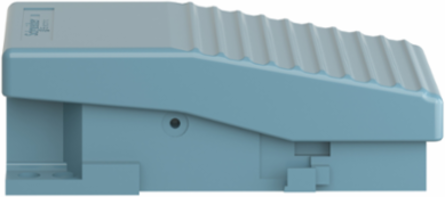

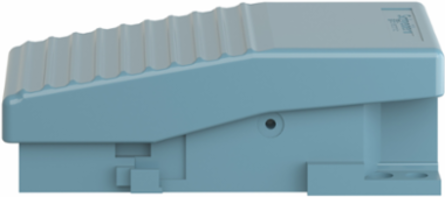

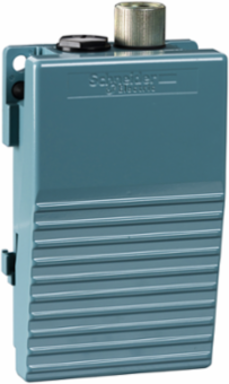

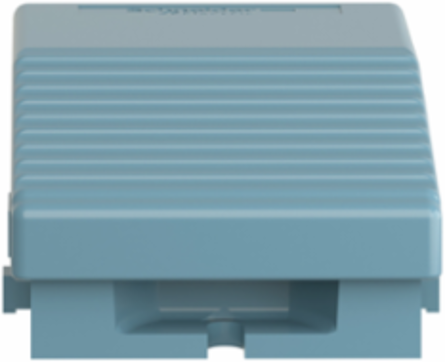

Schneider Electric XPEM110H2 Harmony XPE Single Foot Switch, IP66, Metal, Blue, 1 NC + 1 NO, 1.2 kg
- MPN: XPEM110H2
- PPN: SCH-XPEM110H2
CAD
$266.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for both durability and ease of use, this foot switch from Schneider Electric is a versatile solution for industrial automation applications. The Harmony XPE model features a robust metal construction with an IP66 rating, ensuring reliable performance in challenging environments. With a design that incorporates one normally closed and one normally open contact, it allows for flexible control options in various operational settings. The striking blue finish not only enhances visibility but also adds a touch of style to your work area, making it a practical and visually appealing addition to your automation toolkit.
Features
- This industrial foot switch features a 1-step contact block containing 1 NO (Normally Open) and 1 NC (Normally Closed) contacts with a positive opening operation conforming to IEC 60947-5-1 Appendix K. This means you can seamlessly integrate it into your control circuit as a reliable safety interlock, ensuring immediate and positive interruption of power to prevent machine startup failures or hazardous overruns.
- Engineered with an IP66 enclosure rating, this heavy-duty switch is completely dust-tight and sealed against powerful water jets from any direction. It eliminates the risk of internal short-circuits caused by airborne particulates, hydraulic oils, and manufacturing greases, significantly reducing your machine downtime in severe processing areas.
- Built with a rugged, blue-painted metal chassis and designed without a trigger mechanism for rapid floor activation, this unit boasts a mechanical durability of up to 15,000,000 operating cycles. This robust lifespan guarantees years of maintenance-free service under heavy foot traffic, minimizing component replacement costs on high-speed production lines.
- Carrying official CSA and FIMKO certifications alongside a 10 A cartridge fuse short-circuit protection rating, this Harmony XPE series switch fully complies with standard industrial codes. Deploying it across your production floor immediately validates your facility's adherence to stringent workplace safety regulations, passing strict audits without compliance headaches.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 NC + 1 NO
- Range Of Product
- Harmony XPE
- Product Or Component Type
- foot switch
- Material
- metal
- Trigger Mechanism
- without trigger mechanism
Colourblue
Contact Operation1 step
Foot Switch Typesingle foot switch
Device Short NameXPEM
Complementary
- [Ie] Rated Operational Current
- 3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
- Mechanical Durability
- 15000000 cycles
- Cable Entry
- 2 entries tapped for Pg 16 cable gland
- Net Weight
- 1.2 kg
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Connections - Terminalsscrew clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
Positive Openingwith EN/IEC 60947-5-1 appendix K
Rated Operational Power In W10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 EN/IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 EN/IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 EN/IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Environment
- Product Certifications
- CSA || FIMKO
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- EN/IEC 60947-5-1 || VDE 0660-200
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
Shock Resistance150 gn NF E 09-031 || 20 gn IEC 60068-2-27
Protective TreatmentTC
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
