Schmersal 103015487 SLB 440 Safety Light Barrier, Height 111 mm, Range 75 m, OSSD Outputs PLe
- MPN: 103015487
- PPN: SCM-103015487
CAD
$1374.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

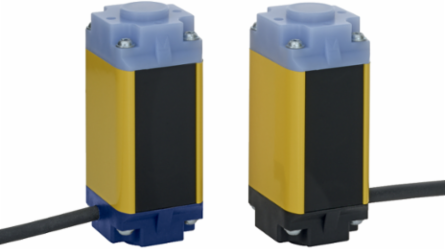

SLB 440 Safety Light Barrier, Height 111 mm, Range 75 m, OSSD Outputs PLe
Features
- Compact design With integral evaluation
- Height range 75 m (Reserve up to 90 m)
- Safe OSSD outputs to PLe
- Automatic start or restart interlock
- Sturdy metal enclosure with M12 connector or cable
- Version with heater for outdoor applications down to –30°C
- Set-up tool and diagnostic indication
Documentation & Downloads
Specifications
Key Specifications
- Length
- 33 mm
- Height
- 111 mm
Width27.8 mm
Electrical data
- Switching voltage OSSD, HIGH signal
- 24 V
- Electrical power consumption of the transmitter, maximum
- 5 W
Electrical power consumption of the receiver, maximum5 W
Length of cable, maximum100 m

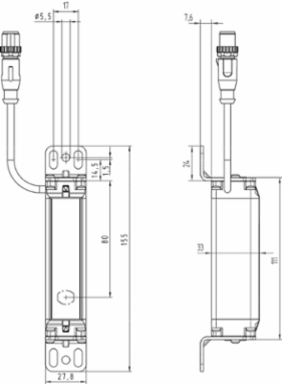

Mechanical data - Dimensions
- Width
- 27.8 mm
Height111 mm
General data - Features
- Restart interlock (manual reset)
- Yes
- Integral system diagnostics, status
- Yes
- Number of beams
- 1
- Wave length of the sensor
- 880 nm
Beam coding availableYes
Integral system diagnosticsYes
Number of fail-safe digital outputs2
General data
- Standards
- EN IEC 61496-2 | EN IEC 61496-1
- Gross weight
- 270 g
- Reaction time, minimum
- 7 ms
Enclosure materialAluminium
Reaction time, maximum22 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 62061
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Safety type in accordance with IEC 61496-1
- 4
Performance Level, up toe
PFH value1.50 x 10⁻⁸ /h
Mission time20 Year(s)
Electrical data - Safety digital outputs
- Output current, (fail-safe output), maximum
- 0.2 A
Design of control elementsp-type
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -30 °C
- Protection class
- III
Ambient temperature-30 ... +50 °C
Storage and transport temperature, maximum+70 °C
Mechanical data - Connection technique
- Termination
- Connector M12
- Terminal, Connector, Transmitter
- Cable with connector plug M12, 4-pole
Terminal connector, RecipientCable with connector plug M12, 5-pole
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 100 mm
- Range, protection field, maximum
- 75,000 mm
Range, protection field, minimum300 mm
Accessory
- Recommended safety switchgear
- PROTECT PSC1 | SRB-E-204ST
Approvals - Standards
- Certificates
- TÜV
