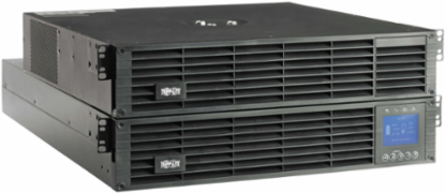

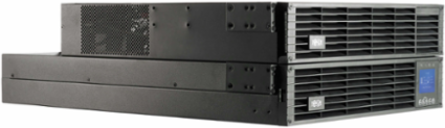

Tripp Lite SU3000LCD2UHVTF SmartOnline UPS 3000VA 2700W On-Line Double-Conversion, 4U
Tripp Lite SU3000LCD2UHVTF SmartOnline UPS 3000VA 2700W On-Line Double-Conversion, 4U
- MPN: SU3000LCD2UHVTF
- UPC: 037332241719
- PPN: TRP-SU3000LCD2UHVTF
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Features
- Offers protected 208V and 120V network-grade output power for critical IT applications
- Zero transfer time between on-line and battery modes for uninterrupted operation
- UPS + step-down transformer offer power protection of both 208V and 120V network devices
- Optional external battery packs provide additional runtime for extended-run applications
- Optional WEBCARDLX network interface required to use Auto Probe feature
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- 2U Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
- Set Power Strategies to Reflect Your Protection Priorities
- Individually Controllable Load Banks Let You Access and Control Outlets Remotely
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- Automatic Bypass Maintains Utility Output During Fault Conditions
- Automatically Turns Back On When Power Is Restored
- Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Optional WEBCARDLX Network Interface Offers 24/7 Access
- Versatile Installation Options in Your Data Center or Network Closet
Specifications
Surge / Noise Suppression
- UPS Dataline Suppression Details
- Single line dialup / network dataline protection included
- AC Suppression Joule Rating
- 570
EMI / RFI AC Noise SuppressionYes
AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 5 min. (2700w)
- Expandable Battery Runtime
- Supports extended runtime with optional external battery packs
- DC System Voltage (VDC)
- 72
- Internal UPS Replacement Battery Cartridge
- RBC72S
- Battery Replacement Description
- Hot-swappable, replaceable batteries
Half Load Runtime (min.)13.5 min. (1350w)
External Battery Pack CompatibilityBP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18 -2US (multi-pack compatible)
Battery Recharge Rate (Included Batteries)3.0 hours from 10% to 90% (typical, full load discharge)
Battery AccessFront panel battery access door
Expandable RuntimeYes
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsThe 3kVA UPS carries agency standards IEC62040-1:2008+A1:2013, UL1778: 2014 R8.15; CAN/CSA-C22.2 No. 107.3-14; CE; EN62040-2:2006, FCC PART 15; NOM; SASO, EAC The 2U step-down transformer carries agency standards UL1778:2014 R10.17 (5TH EDITION); CAN/CSA-C22.2 NO. 107.3-14; CLASS A (emissions); NOM
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth with External Battery Pack (cm)
- 77
- Minimum Required Rack Depth without External Battery Pack (cm)
- 74
- Optional Mounting Accessory Notes
- Quantity two 2POSTRMKITWM accessories are required for 2 post rackmount installation; Quantity one 2-9USTAND accessory required for upright tower installation
- Primary UPS Depth (mm)
- 616
- Primary UPS Width (mm)
- 440
- Shipping Dimensions (hwd / in.)
- 37.75 x 40.00 x 48.00
- UPS Power Module Dimensions (hwd, in.)
- 6.96 x 17.34 x 24.25
- UPS Power Module Weight (lbs.)
- 133.82

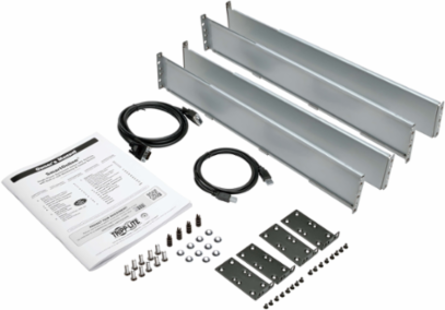

Included Mounting Accessory Description4 post installation accessories included (2 sets)
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND )
Minimum Required Rack Depth with External Battery Pack (in.)30.25
Minimum Required Rack Depth without External Battery Pack (in.)29.25
Primary Form FactorRackmount
Primary UPS Height (mm)177
Rack Height4U
UPS Housing MaterialMetal
UPS Power Module Weight (kg)60.70

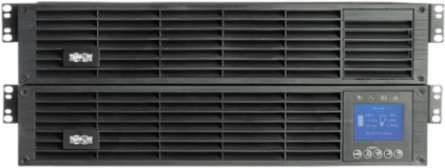

User Interface, Alerts & Controls
- Front Panel LCD Display
- Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information; LCD interface also enables a variety of advanced UPS setup and configuration options
- Alarm Cancel Operation
- Power-fail alarm can be silenced by following on-screen prompts
- LED Indicators
- 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)
Switches5 front panel switches: On/Off, Up, Down and Escape
Audible AlarmAudible alarm indicates power failure, low battery, overload and fault
Voltage Regulation
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
Overvoltage Correction2% output voltage regulation during overvoltages to 288
Input
- Rated input current (Maximum Load)
- 14.97A

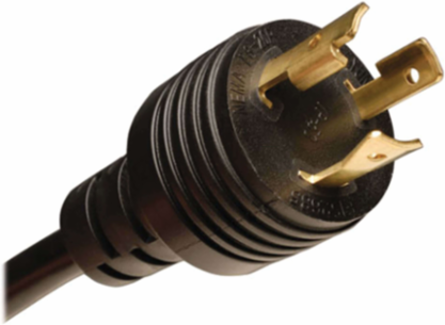

- UPS Input Connection Type
- L6-20P
- Recommended Electrical Service
- 208V 20A
Nominal Input Voltage(s) Supported208V AC
UPS Input Cord Length (ft.)10
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 3000
- Output Watt Capacity (Watts)
- 2700
- Power Factor
- 0.9
- Nominal Voltage Details
- IMPORTANT! Please ensure the UPS is configured for 208V output when used with the included step-down transformer module
- Frequency Compatibility Details
- IMPORTANT! Please ensure the UPS is configured for 60Hz output when used with the included step-down transformer module
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Load Management Receptacles
- Two switchable outlet load banks (2 NEMA 6-15/20R outlets per bank)
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Output Capacity Details
- OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).

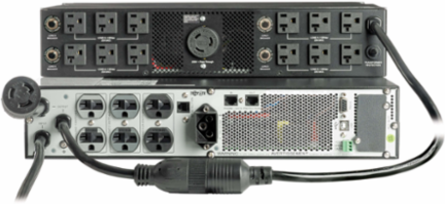

- Output Receptacles
- (12) 5-15/20R; (6) 6-15/20R; (2) L6-20R
Output kVA Capacity (kVA)3
Output kW Capacity (kW)2.7
Crest Factor3:1
Frequency Compatibility60 Hz
Output Voltage Regulation (Line Mode)+/- 2%
Output Voltage Regulation (Battery Mode)+/- 2%
Output Circuit BreakersIncluded 2U transformer module includes four 20A 120V circuit breakers (each protects 3 NEMA 5-15/20R outlets).
Output AC Waveform (Battery Mode)Pure Sine wave
Nominal Output Voltage(s) Supported120V; 208V
Individually Controllable Load BanksYes
Communications
- Network Management Cards
- SNMPWEBCARD ; WEBCARDLX
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 plus assignable contact closure pin functions for On-battery, On bypass, Output-on and Low-battery conditions and remote Shutdown, Output-off, Reboot and Power-toggle operations
Communications CableUSB and DB9 cabling included
Communications InterfaceUSB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
- Relative Humidity
- 5 to 95%, non-condensing
- AC Economy Mode BTU / Hr. (Full Load)
- 588
- AC Mode Efficiency Rating (100% Load)
- >90%
- Audible Noise
- <50dB at front side 1M
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
AC Mode BTU / Hr. (Full Load)933
Battery Mode BTU / Hr. (Full Load)1399
AC Economy Mode Efficiency Rating (100% Load)>95%
Overview
- UPC Code
- 037332241719
UPS TypeOn-Line
Special Features
- Grounding Lug
- Back panel grounding lug included
- High Availability UPS Features
- Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Green Energy-Saving FeaturesHigh efficiency economy mode operation; Individually controllable load banks
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- No transfer time (0 ms.) in online, double-conversion mode; 4 ms. transfer time during economy mode operation
- High Voltage Transfer to Battery Power (Setpoint)
- 288V
Low Voltage Transfer to Battery Power (Setpoint)160V (100% load), 140V (66% load), 120V (33% load)
