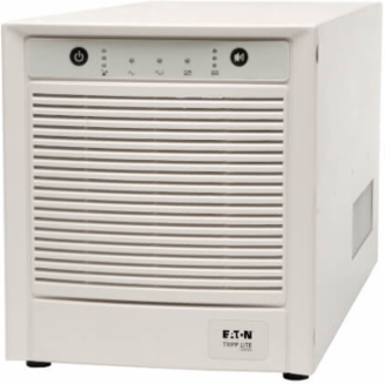

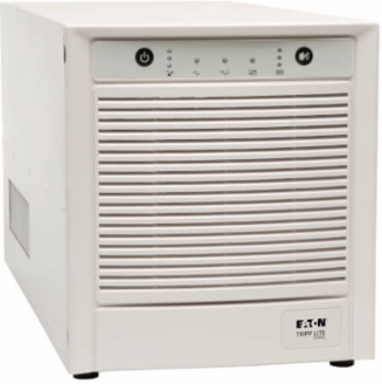

Tripp Lite SMART2500XLHG SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS, Extended Run, SNMPWEBCARD Option, Full Isolation, USB, DB9 Serial
Tripp Lite SMART2500XLHG SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS, Extended Run, SNMPWEBCARD Option, Full Isolation, USB, DB9 Serial
- MPN: SMART2500XLHG
- UPC: 037332168283
- PPN: TRP-SMART2500XLHG
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4809.15/ EA
Description
SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS, Extended Run, SNMPWEBCARD Option, Full Isolation, USB, DB9 Serial
Features
- 2200VA line-interactive extended-run tower UPS
- UL 60601-1 Approved for use within the Patient Care Vicinity
- Approved to IEC60601-1-2:2014, 4th Ed.
- Lowers cumulative leakage current of connected equipment to under 100 µA
- Floating AC output prevents noise coupling
- 2-year limited warranty
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 940
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 4.4 minutes
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- DC System Voltage (VDC)
- 48
- Internal UPS Replacement Battery Cartridge
- RBC48V-HGTWR
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)13 minutes
External Battery Pack CompatibilityBP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)
Battery Recharge Rate (Included Batteries)4.5 hours MAX (10% to 90% capacity) Internal batteries only
Battery AccessBattery access door
Expandable RuntimeYes
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); Tested to UL60601-1 (medical grade)
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Optional Accessories
- Wallmount (UPSWM - tower mounting kit)
- Primary UPS Depth (mm)
- 485
- Primary UPS Width (mm)
- 226
- Shipping Weight (lbs.)
- 100.00
- UPS Power Module Dimensions (hwd, in.)
- 9.72 x 8.90 x 19.09
- UPS Power Module Weight (lbs.)
- 81.5
Installation Form Factors Supported with Included AccessoriesTower
Primary Form FactorTower
Primary UPS Height (mm)247
Shipping Dimensions (hwd / in.)16.00 x 14.00 x 24.00
UPS Housing MaterialPVC
UPS Power Module Weight (kg)36.97
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure, overload and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
- Undervoltage Correction
- Input voltages between 96 and 106 are boosted by 10%
Overvoltage CorrectionInput voltages between 126 and 143 are reduced by 9%
Severe Undervoltage CorrectionInput voltages between 81 and 95 are boosted by 21%
Input
- Rated input current (Maximum Load)
- 16 AMP
- UPS Input Connection Type
- C20 inlet
- UPS Input Cord Length (ft.)
- 6
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers2 x 20A
Recommended Electrical Service20A 120V
Output
- Output Volt Amp Capacity (VA)
- 2200
- Output Watt Capacity (Watts)
- 1920
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- 115V (+/- 5%)
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Nominal Output Voltage(s) Supported
- 115V; 120V
- Individually Controllable Load Banks
- No
Output kVA Capacity (kVA)2.2
Power Factor0.87
Output Voltage Regulation (Line Mode)-18%, +8%
Output Receptacle DetailsHospital grade output receptacles
Output AC Waveform (Battery Mode)Pure Sine wave

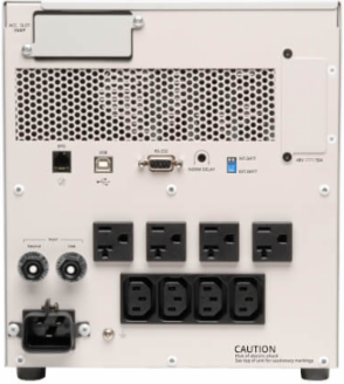

Output Receptacles(4) 5-15/20R; (4) C13
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions

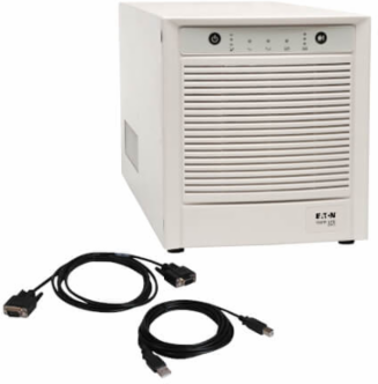

- Communications Cable
- USB and DB9 serial cabling included
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications InterfaceUSB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 315.2
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)162.8
AC Mode Efficiency Rating (100% Load)94%
Overview
- UPC Code
- 037332168283
UPS TypeLine-Interactive
Isolation
- Output Isolation Transformer
- Hospital grade load isolation transformer
Leakage CurrentEqual to 100 microamps
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 143
Low Voltage Transfer to Battery Power (Setpoint)81
