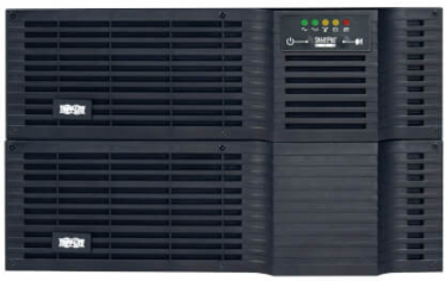

Tripp Lite SMART5000RT3U 6U Line-Interactive Sine Wave UPS, 5000VA/4000W, USB & DB9 Ports
- MPN: SMART5000RT3U
- UPC: 037332099242
- PPN: TRP-SMART5000RT-3U
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartPro 208 & 120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Options, USB, DB9
Features
- SMART5000RT3U UPS System
- BP48V60RT3U battery pack
- USB & DB9 serial cabling
- Mounting hardware
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 5000 VA / 4000 W, 4 kW nominal output
- Output Waveform
- Pure Sine Wave (Battery Mode), Sine Wave (AC Mode)
- Input Voltage
- 208 V AC nominal
- Input Connection Type
- NEMA L6-30P
- Power Factor
- 0.8
- Load Management
- Eight switchable single-outlet 5-15R load banks with 15A branch rated breakers
- Battery Runtime Full Load
- 16 minutes (4000 W)
- Battery Recharge Time
- Less than 4 hours from 10% to 90% (typical, full load discharge)
- Expandable Battery Runtime
- Yes, via external battery packs BP48V24-2U, BP48V60RT-3U, BP48V27-2US
- Overvoltage Correction
- Input 240 260 V reduced by 12%
- Severe Undervoltage Correction
- Input 151 179 V boosted by 24%
- Low Voltage Transfer Setpoint
- 151 V
- UPS AC Suppression Joule Rating
- 1020
- Communication Ports
- 2 USB, 2 DB9 Serial, Contact closure
- Cold Start
- Supported
- Operating Temperature Range
- 0 to 40 C (32 to 104 F)
- Relative Humidity
- 0 to 95%, non-condensing
- Dimensions (Battery Pack)
- 5.2 x 17.5 x 25 in
- Weight (UPS Power Module)
- 93 lbs (42.18 kg)
- AC Mode Efficiency Rating
- 94% at 100% load
- Installation Form Factors Supported
- 4 post 19 inch rackmount included; optional 2 post rackmount, 4 post short-depth rackmount, tower
- Audible Noise
- 45 dBA maximum at 1m front side
- Grounding Lug
- Back panel grounding lug
- Output Circuit Breakers
- 3 x 15A branch rated; L6-30R and L14-30R outlets unbreakered
Output Voltage208/120 V nominal output

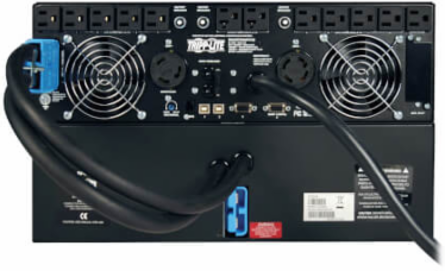

Output Receptacles(10) 5-15R; (2) 5-15/20R; (1) L6-30R; (1) L14-30R
Input Current24 A max (factory L6-30P), 27 A max (50 A plug)
Input Circuit Breaker30 A double-pole
Frequency60 Hz
Battery Voltage48 V DC
Battery Runtime Half Load38 minutes (2000 W)
Battery ReplacementHot-swappable, user replaceable batteries
Voltage RegulationAutomatic Voltage Regulation (AVR), maintains line power with input range 151 to 282 V
Undervoltage CorrectionInput 180 199 V boosted by 12%
Transfer Time2-4 milliseconds
High Voltage Transfer Setpoint260 V
AC Noise SuppressionEMI / RFI Yes
Network Management Card CompatibilitySNMPWEBCARD, WEBCARDLX
Input PhaseSingle-Phase
Storage Temperature Range-15 to 50 C (5 to 122 F)
Dimensions (UPS Power Module)5.2 x 17.5 x 22.5 in (13.21 x 44.45 x 57.15 cm)
Rack Height6U
Weight (Battery Pack)163 lbs (73.94 kg)
Form Factor6U Rack/Tower
Housing MaterialSteel
Cooling MethodFans
Alarm Cancel OperationPower-fail alarm can be silenced; resounds on low battery
Warranty2 years (3 with registration)
