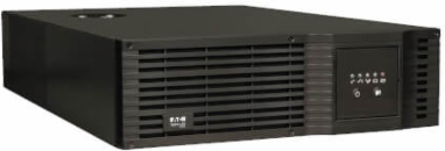

Tripp Lite SMART5000TEL3U Line-Interactive UPS 5kVA 3.75kW, 3U Rackmount, USB, DB9 Serial
- MPN: SMART5000TEL3U
- UPC: 037332116116
- PPN: TRP-SMART5000TEL3U
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartPro 208V 5kVA 3.75kW Line-Interactive Sine Wave UPS, 3U Rack/Tower, Network Card Options, USB, DB9 Serial, TAA
Features

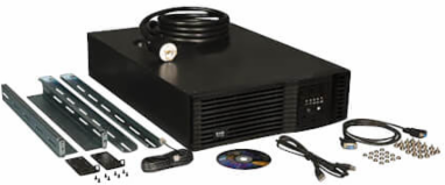

- SMART5000TEL3U UPS System
- USB & DB9 serial cabling
- Mounting hardware
Documentation & Downloads
Specifications
Additional
| Output Volt Amp Capacity | 5000 VA |
|---|---|
| Output kW Capacity | 3.75 kW |
| Nominal Output Voltage | 208V, 120V |
| Output Voltage Regulation (Line Mode) | 208 & 120V (-6%, +20%) |
| Output Circuit Breakers | 20A double pole breaker supports L6-20R outlets, 5A breaker supports 5-15R outlets, L6-30R outlet is unbreakered |
| Output AC Waveform (Battery Mode) | Pure Sine wave |

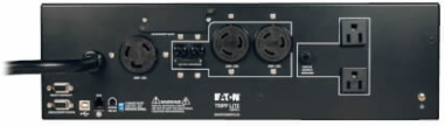

| Output Receptacles | (2) 5-15R; (2) L6-20R; (1) L6-30R |
| Nominal Input Voltage | 208V AC |
| Input Cord Length | 10 ft |
| Input Phase | Single-Phase |
| Half Load Runtime | 20 min (1875 W) |
| Battery Recharge Rate | Less than 4 hours (10% to 90%) |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power with input range 167-260V |
| Undervoltage Correction | Input 167-194V boosted by 12% |
| Audible Alarm | Indicates power-failure, overload, low-battery |
| Surge Suppression Joule Rating | 1020 |
| Cooling Method | Fan |
| Minimum Rack Depth | 30 in |
| Rack Height | 3U |
| UPS Housing Material | Steel |
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
| AC Mode BTU/Hr (Full Load) | 366 |
| AC Mode Efficiency | 97% |
| Communications Interface | Contact closure; DB9 Serial; EPO; USB; Slot for SNMP/Web interface |
| Low Voltage Transfer to Battery | 167V |
| High Availability Features | Hot swappable batteries |
| Certifications | FCC Part 15 Category A; Tested to CSA and UL1778 (USA) |
| Output Watt Capacity | 3750 W |
|---|---|
| Power Factor | 0.75 |
| Frequency Compatibility | 60 Hz |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Output AC Waveform (AC Mode) | Sine wave |
| Output Capacity Details | 120V 5-15R outlets limited to 450 watts max |
| Rated Input Current (Max Load) | 24A |

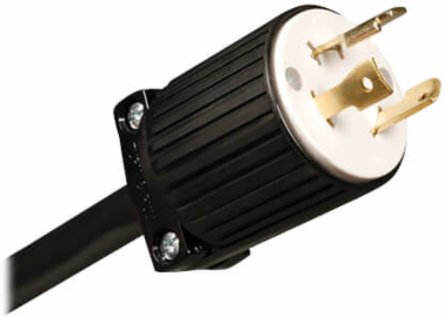

| Input Connection Type | L6-30P |
| Recommended Electrical Service | 30A 208V |
| Full Load Runtime | 8.5 min (3750 W) |
| DC System Voltage | 48 VDC |
| Battery Replacement | Hot-swappable, user replaceable batteries |
| Overvoltage Correction | Input 228-260V reduced by 12% |
| Switches | 2 switches control power and alarm-cancel/self-test operation |

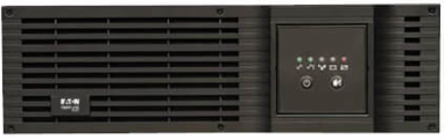

| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation, battery status |
| EMI/RFI AC Noise Suppression | Yes |
| Installation Form Factor | 4 post 19 inch rackmount included; 2 post rackmount and tower optional |
| UPS Dimensions (H x W x D) | 5.25 x 17.5 x 25 in (133 x 445 x 635 mm) |
| UPS Weight | 143.3 lbs (65 kg) |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 0 to 95%, non-condensing |
| Battery Mode BTU/Hr (Full Load) | 1423 |
| Audible Noise | 45 dBA max at 1m front side |
| Transfer Time | 7 ms (AC to Battery), 1 ms (Battery to AC) |
| High Voltage Transfer to Battery | 260V |
| Energy Efficiency | Greater than 95% |
