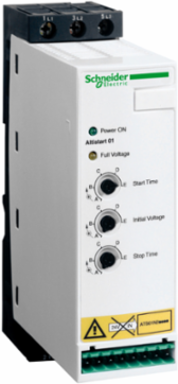

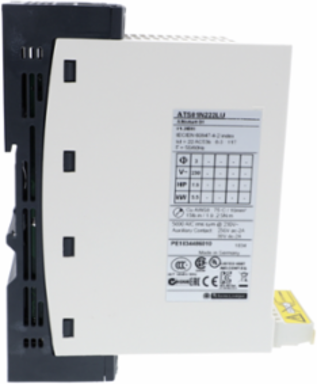

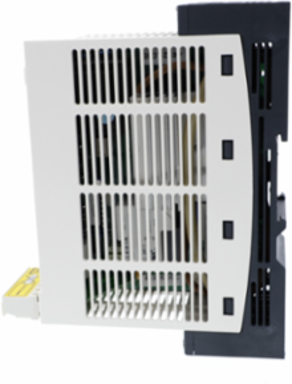

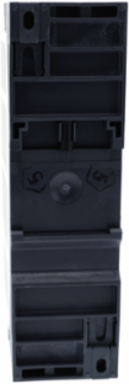

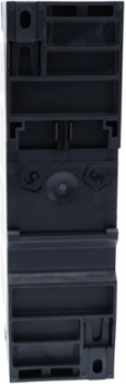

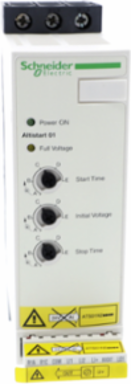

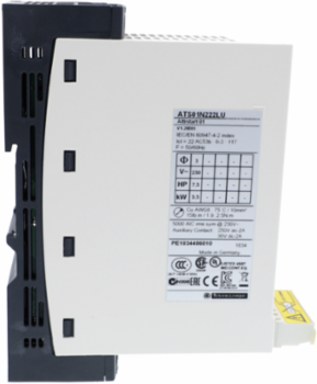

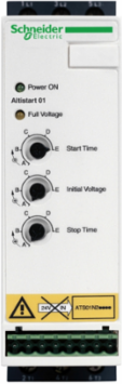

Schneider Electric ATS01N222QN Altistart 01 Soft Starter 22A 7.5-11kW 380-415V
- MPN: ATS01N222QN
- PPN: SCH-ATS01N222QN
CAD
$548.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 22A. This Altistart 01 can be used for a motor rated power up to 5.5kW or 7.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Depth131 mm
Complementary Attributes
- Maximum Switching Current
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductiverelay outputs 2 A 30 kV DC cos phi = 0.5 20 ms inductive
Minimum Switching Current10 mA 6 V DC relay outputs
Important Information Attributes
- Persona Type Ids
- BM9, EU, OM, OM8, SC, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- screw connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuitscrew connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit, screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit, 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuitscrew connector - rigid 2 0.5...1 mm² 17 AWG control circuitscrew connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit, 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit, 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit
- Motor Power Kw
- 11 kW, 3 phase 380...415 V, 7.5 kW, 3 phase 380...415 V
- Tightening Torque
- 0.5-0.5 N.m, 1.9-2.5 N.m
- [Ue] Rated Operational Voltage
- 380...415 V 11 kW, 380...415 V 7.5 kW
- Local Publishable Date
- 2026-04-09
- Stocking Flag
- N
- Device Type
- Soft starter - Soft starter
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1927
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Assembly Style
- with heat sink
- Current Consumption
- 110 A at nominal load
- Device Short Name
- ATS01
- Function Available
- integrated bypass
- Marking
- CE
- Network Frequency
- 47.5...63 Hz
- Phase
- 3 phase
- Power Range
- 7-11 kW 380-440 V 3 phase
- Product Destination
- asynchronous motors
- Product Specific Application
- simple machine
- Returnability
- Yes
- Starting Torque
- 30...80 % of starting torque of motor connected directly on the line supply
- Supply Voltage Limits
- 342-456 V
- Type Of Start
- start with voltage ramp
- Vibration Resistance
- 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
- Height Nominal
- 154 mm
- [Uc] Control Circuit Voltage
- built into the starter
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109170
Persona Type NamesCharge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityconducted and radiated emissions level B conforming to CISPR 11, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2EMC immunity level 3 conforming to EN 50082-1, EMC immunity level B conforming to EN 50082-2harmonics level 3 conforming to IEC 1000-3-2, harmonics level 3 conforming to IEC 1000-3-4immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3micro-cuts and voltage fluctuation conforming to IEC 61000-4-11voltage/current impulse level 3 conforming to IEC 61000-4-5
Starting Time1 s / 1005 s / 2010 s / 10, adjustable from 1 to 10 s
Certificate AgencyCSA, UL, CCC, C-tick, GOST
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeATS01N2
Deceleration Time Symbadjustable from 1 to 10 s
Display Type1 LED Green)starter powered up1 LED Yellow)nominal voltage reached
Icl Starter Rating22 A
Motor Starter Typesoft starter
Operating Positionvertical +/- 10 degree
Power Dissipation In W124.5 W in transient state4.5 W at full load and at end of starting
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesoft starter
Range Of ProductAltistart 01
Shock Resistance15 gn 11 ms EN/IEC 60068-2-27
Supply Frequency50...60 Hz - 5...5 %
Sustainable PackagingYes
Utilisation CategoryAC-53B EN/IEC 60947-4-2
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal45 mm
[Us] Rated Supply Voltage380...415 V - 10...10 %
Package Weight(Lbs)664.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-50 °C (with current derating of 2 % per °C)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m, > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2-25-70 °C EN/IEC 60947-4-2, -25-70 °C EN/IEC 60947-4-2
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation or dripping water EN/IEC 60068-2-3
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altistart 01
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- open collector logic LO1 end of starting signal, relay outputs R1A, R1C NO
- Discrete Output Current
- 2 A DC-133 A AC-15
Output Voltage<= power supply voltage, <= power supply voltage
Discrete Output Voltage24 V 6...30 V) open collector logic
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Logic
- positive LI1, LI2, BOOST 13 V, >= 0.5 mA
- Discrete Input Voltage
- 24...40 V
Discrete Input Typelogic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
