Schneider Electric SSM1D36BD single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, DC switching, input 4 to 32V DC, output 1 to 100V DC

single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, DC switching, input 4 to 32V DC, output 1 to 100V DC
single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, DC switching, input 4 to 32V DC, output 1 to 100V DC
single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, DC switching, input 4 to 32V DC, output 1 to 100V DC
single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, DC switching, input 4 to 32V DC, output 1 to 100V DC
  • MPN: SSM1D36BD
  • PPN: SCH-SSM1D36BD

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$60.74/ EA

Description

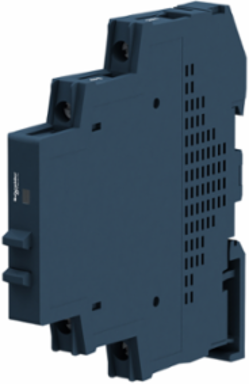

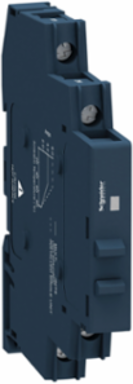

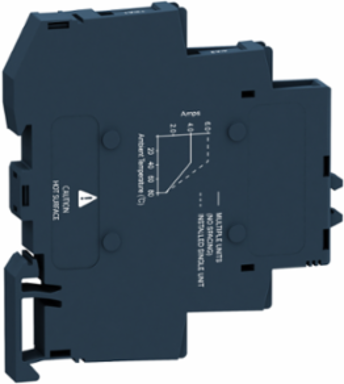

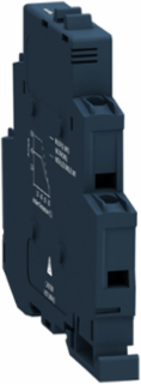

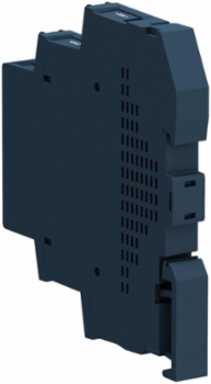

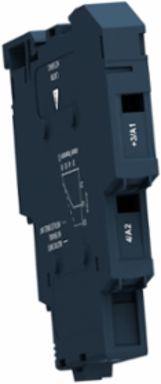

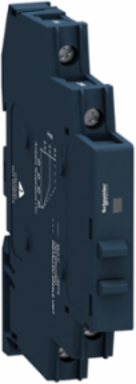

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 100V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0

Specifications

Complementary

[Uc] Control Circuit Voltage
4...32 V DC
Output Voltage
1...100 V DC
Insulation Resistance
1000 MOhm 500 V DC
Maximum Voltage Drop
<0.6 V on-state
Surge Current
60 A 10 ms
Load Current
0.0025-6 A
Minimum Switching Voltage
4 V DC turn-on
Absolute Maximum Voltage
100 V
Maximum Switching Voltage
1 V DC turn-off
Capacitance Unbalance
10 pF input/output
[In] Rated Current
6 A
Input Current Limits
8-11 mA
Depth

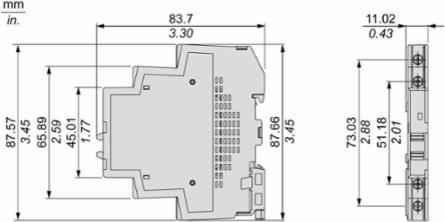

83.7 mm
Height90.3 mm
Tightening Torque0.5...0.8 N.m input || 0.5...0.8 N.m output
Mounting Supportsymmetrical DIN rail
Connections - Terminalsscrew terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
Response Time0.6 ms turn-on) || 0.3 ms turn-off)
Net Weight0.05 kg
Maximum Leakage Current0.1 mA off-state
Local Signallinginput status LED green)
Solid State Output TypeMosfet output || DC switching
Resistance0.1 Ohm on-state
Width11 mm
Overvoltage CategoryIII

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1307069EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity Profile
ENVEOLI1307069EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Environment

Product Certifications
UL || CSA
Standards
IEC 62314 || IEC 61000 || IEC 60950-1
Dielectric Strength
4 kV DC input/output || 4 kV DC input or output to case
Ip Degree Of Protection
IP20
Ambient Air Temperature For Storage
-30-100 °C
Ambient Air Temperature For Operation-30-80 °C
Pollution Degree2
MarkingCE
Flame RetardanceV0 UL 94

Key Specifications

Range Of Product
Harmony Solid State Relays
Product Or Component Type
solid state relay up to 10 A
Number Of Channels
1
Output Switching ModeDC switching
Network Number Of Phases1 phase
Device Short NameSSM
