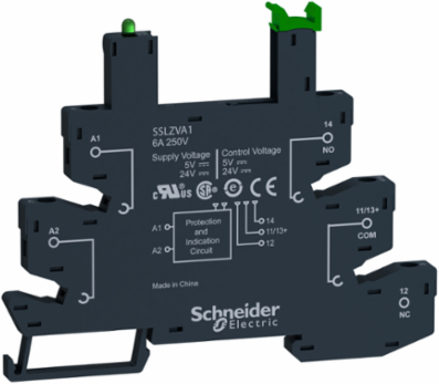

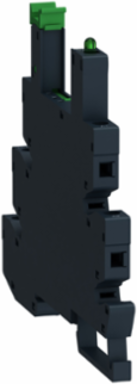

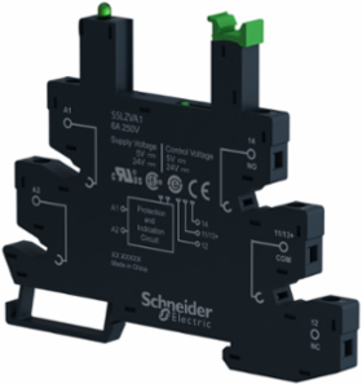

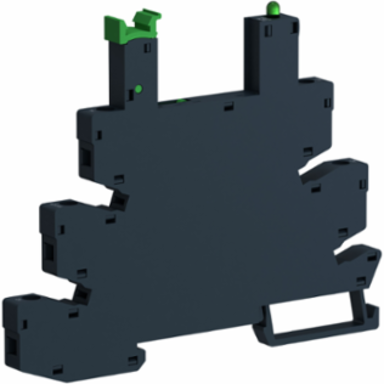

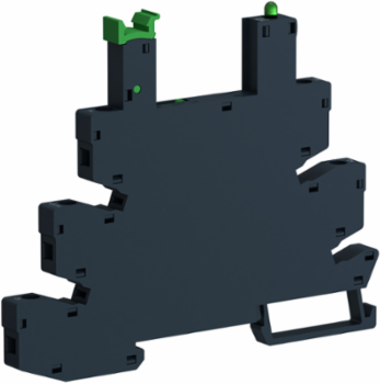

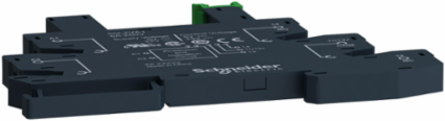

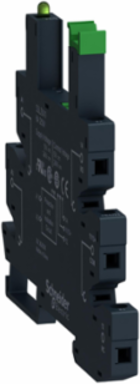

Schneider Electric SSLZVA1 Harmony SSL Socket 5-24V DC with LED Indicator, IP20, 0.0285kg

MPN: SSLZVA1
PPN: SCH-SSLZVA1

$13.14

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Sweden, United States

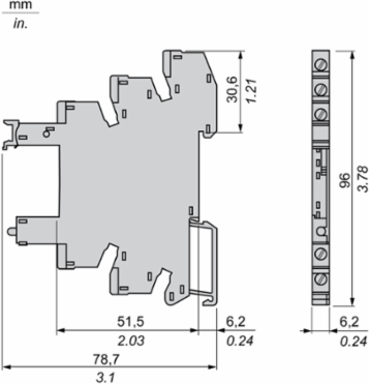

Depth	78.6 mm

Complementary Attributes

Rated Current	6 A

Line Rated Current	6 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Switching Voltage	5 V DC, 24 V DC
Connections Terminals	screw connectors
[Uc] Control Circuit Voltage	5 V, 24 V
Connections - Terminals	screw connectors, screw clamp terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) solid without cable endscrew clamp terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0049770722
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.3766246079
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Terminal Arrangement	separate
Fixing Mode	clip-on (35 mm DIN rail)
Group Of Product	SSL_NO_SEP_FLAT_SCREW_5-24
Marking	CE
Product Or Component Type	socket for SSL1
Returnability	Yes
Shape Of Pin	flat
Sustainable Packaging	Yes
Pep Code	ENVPEP2504008EN
Pep Verification Date	2017-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Width Nominal	6.2 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536698000

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Tightening Torque	< 0.4 N.m M2.5, < 0.4 N.m M2.5< 0.4 N.m M2.5, < 0.4 N.m M2.5
Certificate Agency	CSA C22-2 No 14, UL 508
[Ue] Rated Operational Voltage	< 250 V DC, < 250 V DC< 250 V DC, < 250 V DC
Carbon Footprint Of The Distribution Phase [A4]	0.0039996375, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0004534277, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1405004EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	SSLZ
Device Short Name	SSLZ
Flame Retardance	V0 conforming to UL 94
Local Signalling	LED (green) for input status
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Solid State Relays
Sale Per Indivisible Quantity	10
Software Version	EIME v5.6
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Database Version	2017-03
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide a socket with built-in reverse polarity protection circuit and LED indicator for SSL solid state relay with control voltage 230 Vac during 20 years and a 30% use rate, in accordance with the French standards.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal	96 mm
[Ith] Conventional Free Air Thermal Current	6 A
Package Weight(Lbs)	23.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Product Compatibility	solid state relay SSL NO 24 V DC, solid state relay SSL NO 5 V DC
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1405004EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2504008EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.3860547452
Environmental Disclosure	ENVPEP2504008EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2017-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
