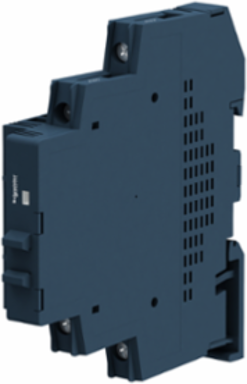

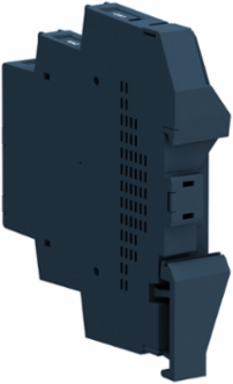

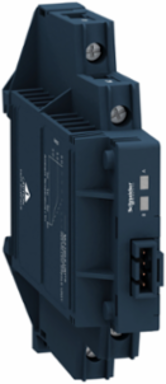

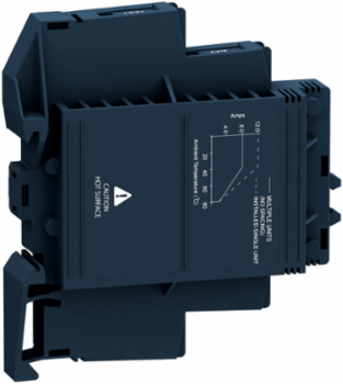

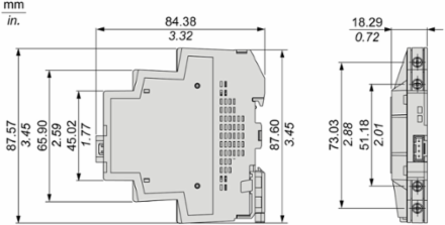

Schneider Electric SSM2A16BDR Harmony Solid State Relay, 6A, 4-32V DC, 24-280V AC, DIN Rail Mount
- MPN: SSM2A16BDR
- PPN: SCH-SSM2A16BDR
CAD
$87.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony SSM solid state modular DIN rail dual channel relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico
Depth84.4 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.3 V on-state, <1.3 V on-state<1.3 V on-state, <1.3 V on-state
- Line Rated Current
- 6 A
- Maximum Leakage Current
- 0.1 mA off-state
- Minimum Switching Voltage
- 4 V DC turn-on
Absolute Maximum Voltage600 V
Maximum Horse Power Rating0.16 hp 40 °C 240 V AC
Maximum Switching Voltage1 V DC turn-off
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2.5 kV AC for input/output, 2.5 kV AC for input or output to case
- Certificate Agency
- UL, CSA
- Connections - Terminals
- screw terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cos Phi
- 0.5-0.5 (with maximum load)
- Flame Retardance
- V0 conforming to UL 94
- Load Current
- 0.15-6 A
- Marking
- CE
- Number Of Channels
- 2
- Phase
- 1 phase
- Product Configuration Type
- relay configuration
- Range Of Product
- Harmony Solid State Relays
- Returnability
- Yes
- Pep Code
- ENVPEP1307069EN
- Width Nominal
- 18 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque0.5...0.8 N.m for input, 0.5...0.8 N.m for output
[Uc] Control Circuit VoltageDC, 4...32 V
Maximum I²T For Fusing2560 A².s for 10 ms at 50 Hz, 2330 A².s for 8.33 ms at 60 Hz
Local Publishable Date2025-04-05
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1307069EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Control Typewithout test button
Device Short NameSSM
Insulation Resistance1000 MOhm at 500 V DC
Local SignallingLED (green) for input status
Mounting Supportsymmetrical DIN rail
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemodular DIN rail relay
Response Time0.5 cycle (turn-off)0.1 ms (turn-on)
Sustainable PackagingYes
Height Nominal90.3 mm
Dv/Dt500 V/µs off-state at maximum voltage
Package Weight(Lbs)102 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-80 °C, -30-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1307069EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-30-100 °C, -30-100 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1307069EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1307069EN
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typemodular DIN rail relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- SCR output, random voltage switching
- Output Voltage
- 24...280 V AC
Output Switching Moderandom voltage switching
Surge Protection And Filtering Attributes
- Surge Current
- 715 A 16.6 ms750 A 20 ms
Input Attributes
- Cos Phi
- 0.5-0.5 (with maximum load)
Input Current Limits14-16.87 mA
Overview Attributes
- Device Presentation
- complete product
