Schneider Electric SSP1D425BDT Harmony Solid State Relay 25A, 3.5-32V DC Input, Panel Mount
- MPN: SSP1D425BDT
- PPN: SCH-SSP1D425BDT
CAD
$110.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

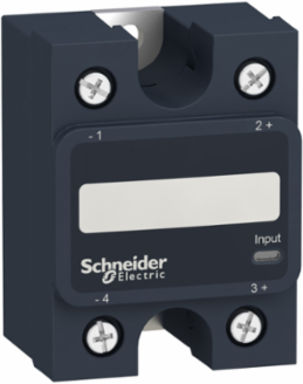

This Harmony SSP solid state panel mount single-phase relay is rated 25A, is controlled with a 3.5V to 32V DC input, has a rated load voltage of 1V to 150V DC with DC switching. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Complementary Attributes
- Maximum Voltage Drop
- <2.1 V on-state, <2.1 V on-state<2.1 V on-state, <2.1 V on-state
- Maximum Leakage Current
- 0.3 mA off-state
- Minimum Switching Voltage
- 3.5 V DC turn-on
Line Rated Current25 A
Maximum Switching Voltage1 V DC turn-off
Rated Current25 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without test button, without test button
- Marking
- UL, CE, EAC, CSA
- Safety Reliability Data
- B10d = 1731395, MTTFd = 1875.9 years
- Certificate Agency
- EAC, CE, UL, CSA
- Connections - Terminals
- ring lugs 11.7 x 4.5 mm outputscrew terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end inputscrew terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end outputforked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0250946804
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.1764907216
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED, green input
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Device Type
- type 1 - 25 A miniature circuit breaker (MCB) Btype 2 - 13 A miniature circuit breaker (MCB) B
- Range Of Product
- Harmony Solid State Relays
- Software Version
- EIME v5.8.1
- Thermal Impedance
- 0.48 °C-in²/W at 25 psi
- Tightening Torque
- 1.5...1.7 N.m for input2...2.2 N.m for output
- Pep Code
- ENVPEP1505006EN
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 56
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength2.5 kV AC for input/output, 2.5 kV AC for input or output to case
Response Time0.1 ms (turn-on), 0.1 ms (turn-off)
Control Circuit Voltage3.5...32 V
[Uc] Control Circuit VoltageDC, 3.5...32 V
Carbon Footprint Of The Distribution Phase [A4]0.0136761856, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0005944087, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 768 kg CO2 eq., 4768.1277198089
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1505006EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Short NameSSP1
Load Current0.001-25 A
Mounting Supportpanel
Phase1 phase
Product Or Component Typepanel mount relay
Provided Equipmentthermal pad
ReturnabilityYes
Sustainable PackagingYes
Thermal Resistance0.22 °C/W junction to case
Total Lifecycle Carbon Footprint4 769 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh8075.865
Energy Model - Installation [A5]Electricity Mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; <lt/> 1kV; EU-27
[Uimp] Rated Impulse Withstand Voltage2.5 kV output to case
Package Weight(Lbs)106.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4769.3435758052
- Environmental Disclosure
- ENVPEP1505006EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-125 °C, -40-125 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1505006EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1505006EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Provided Equipment
- thermal pad
Product Or Component Typepanel mount relay
Range Of ProductHarmony Solid State Relays
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- Mosfet output, DC switching
- Output Voltage
- 1...150 V DC
Output Switching ModeDC switching
Surge Protection And Filtering Attributes
- Surge Current
- 106 A 10 ms
Input Attributes
- Input Current Limits
- 10-15 mA
Overview Attributes
- Device Presentation
- complete product
