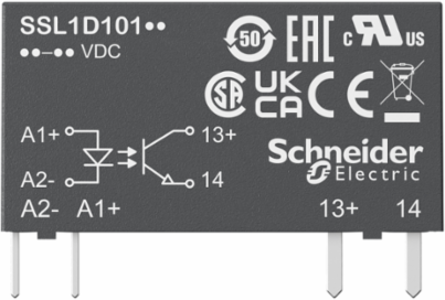

Schneider Electric SSL1D03JD Harmony Solid State Relay, 3.5A, DC Switching, 3-12V DC Input, 1-24V DC Output
- MPN: SSL1D03JD
- PPN: SCH-SSL1D03JD
CAD
$28.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

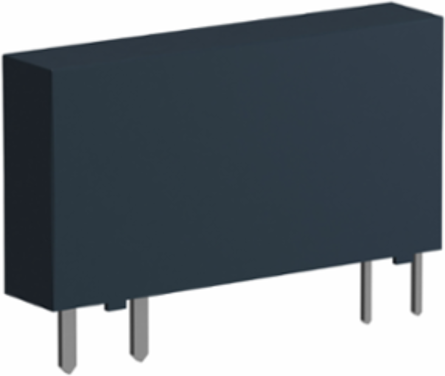

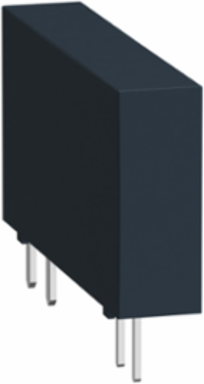

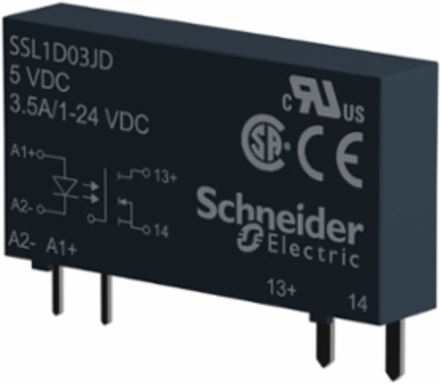

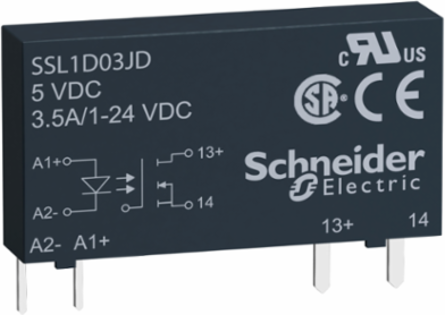

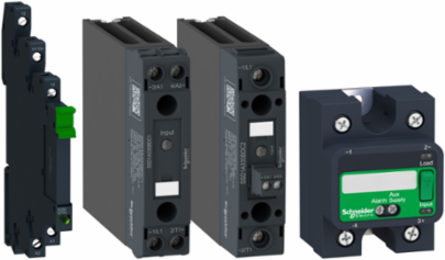

This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Mexico, Sweden, United States

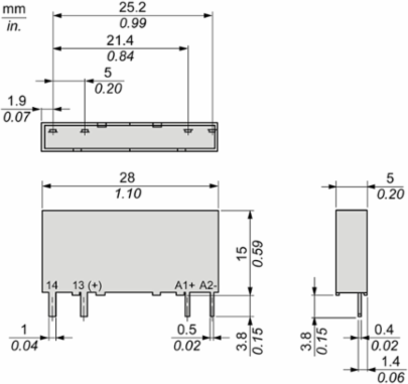

Depth15 mm
Complementary Attributes
- Maximum Voltage Drop
- <0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state, <0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state
- Line Rated Current
- 3.5 A
- Maximum Operating Frequency
- 500 Hz
- Minimum Switching Voltage
- 3 V DC turn-on
Absolute Maximum Voltage35 V
Maximum Leakage Current0.001 mA off-state
Maximum Switching Voltage1 V DC turn-off
Rated Current3.5 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2, conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5, radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
- Control Circuit Voltage
- 3...12 V
- [Uc] Control Circuit Voltage
- DC, 3...12 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.000516086, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0000241857
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 15 kg CO2 eq., 15.4512
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Use Carbon Footprint
- 15.4512
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- SSL
- Flame Retardance
- V0 conforming to UL 94
- Marking
- CE
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Solid State Relays
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2504008EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 27
- Width Nominal
- 5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 664.98
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 15.4512
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 57.6078
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 308.586
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 269.346
- Water Pollution (M3) Operational Energy Use [B6]
- 637.56
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC
Certificate AgencycURus, CSA, EAC, CE, UKCA
[Uimp] Rated Impulse Withstand Voltage3.5 kV for input/output circuit IEC 62314, IEC 62314, 3.5 kV for input to case UL 508, UL 5083.5 kV for input to case IEC 623143.5 kV for input/output circuit UL 508, 3.5 kV output to case
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.001020804, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.1248488626
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Dielectric Strength2500 V for input/output
Load Current0.001-3.5 A
Mounting Supportsocket
Phase1 phase
Product Or Component Typeplug-in relay
Response Time0.12 ms (turn-on)0.1 ms (turn-off)
Software VersionEIME v5.7.0.4
Total Lifecycle Carbon Footprint16 kg CO2 eq.
Database Version2018-09
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh31.536
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal28 mm
[Ui] Rated Insulation Voltage30 V
Package Weight(Lbs)4.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]175.38
Net Use Of Fresh Water (M3) Operational Energy Use [B6]56.0226
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]269.346
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]39.24
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]39.24
Customs Code8536410060
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-80 °C, -20-80 °C, -20-80 °C, -20-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 15.5776099383
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C, -20-85 °C, -20-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2504008EN
Ip Degree Of ProtectionIP00
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2504008EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typeplug-in relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- Mosfet output, DC switching
- Output Voltage
- 3...30 V DC
Output Switching ModeDC switching
Surge Protection And Filtering Attributes
- Surge Current
- 9 A 10 ms
Input Attributes
- Input Current
- 10 mA
Input Impedance500 Ohm
Overview Attributes
- Device Presentation
- complete product
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
