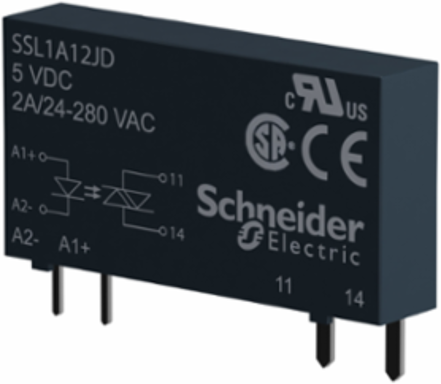

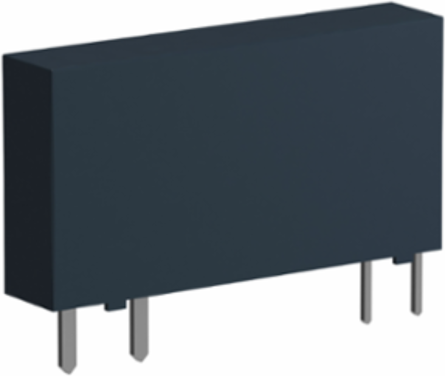

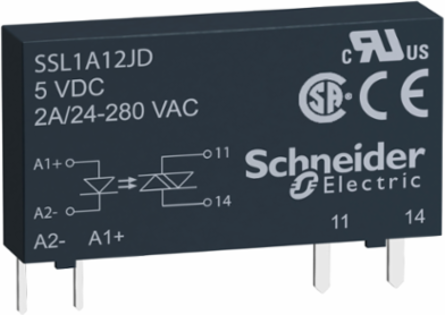

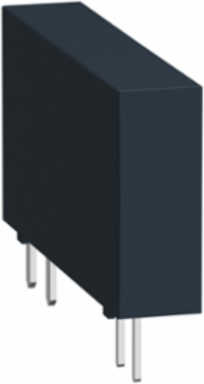

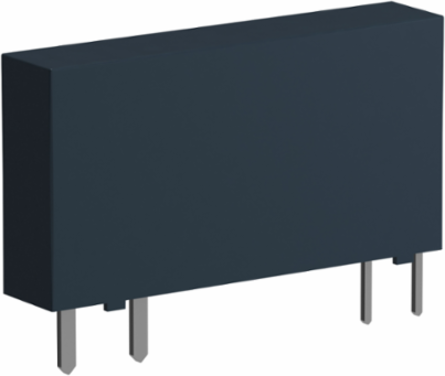

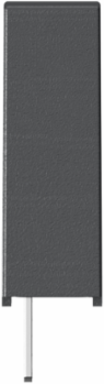

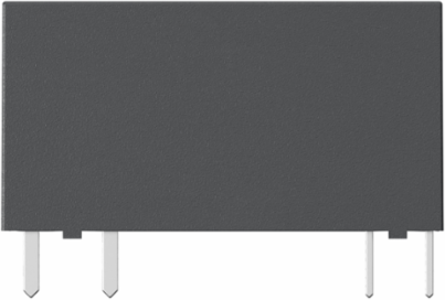

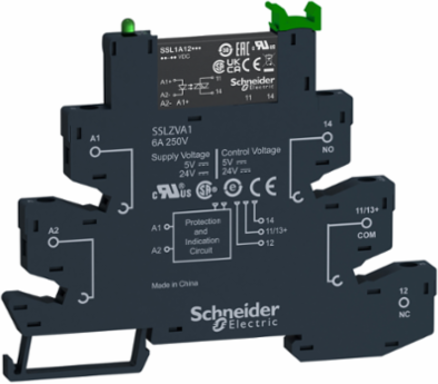

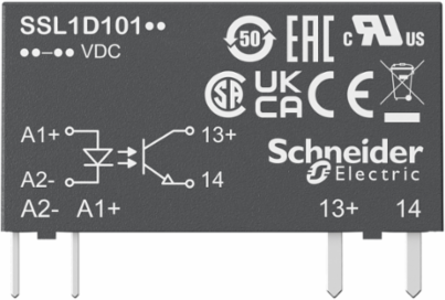

Schneider Electric SSL1A12JD Harmony Solid State Relay 2A, 24-280V AC Output, 3-12V DC Input, IP67
- MPN: SSL1A12JD
- PPN: SCH-SSL1A12JD
CAD
$20.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 3V to 12V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Mexico, United States

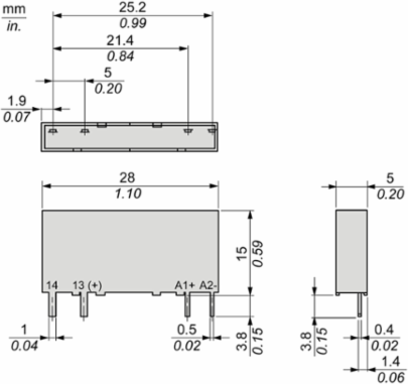

Depth15 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.5 V on-state, <1.5 V on-state<1.5 V on-state, <1.5 V on-state, <1.5 V on-state, <1.5 V on-state<1.5 V on-state, <1.5 V on-state
- Line Rated Current
- 2 A
- Maximum Switching Voltage
- 1 V DC turn-off
- Rated Current
- 2 A
Absolute Maximum Voltage600 V
Maximum Leakage Current4 mA off-state
Minimum Switching Voltage3 V DC turn-on
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2, conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV criteria B (line to line) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV criteria B (line to earth) conforming to IEC 61000-4-5, radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
- Response Time
- 0.5 cycle (turn-on), 0.5 cycle (turn-off)
- Certificate Agency
- cURus, CSA, EAC, CE, UKCA
- [Uimp] Rated Impulse Withstand Voltage
- 4.0 kV for input/output circuit IEC 62314, IEC 62314, 4.0 kV for input to case UL 508, UL 5084.0 kV for input to case IEC 623144.0 kV for input/output circuit UL 508, 4.0 kV output to case
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0005160921, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0002619424
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 10 kg CO2 eq., 9.7641104167
- Local Publishable Date
- 2025-12-02
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- SSL
- Flame Retardance
- V0 conforming to UL 94
- Marking
- CE
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Solid State Relays
- Software Version
- EIME v5.6
- Total Lifecycle Carbon Footprint
- 10 kg CO2 eq.
- Database Version
- 2017-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 39.858
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 28 mm
- [Ui] Rated Insulation Voltage
- 280 V
- Short-circuit Current
- 5000 A
- Package Weight(Lbs)
- 4.000 g
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 24.7975
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC
Control Circuit Voltage3...12 V
[Uc] Control Circuit VoltageDC, 3...12 V
Maximum I²T For Fusing33 A².s for 10 ms at 50 Hz, 29 A².s for 8.3 ms at 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0005848752, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.0705190019
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Associated Fuse Rating2.5 A 250 V type 1
Dielectric Strength2500 V for input/output
Load Current0.07-2 A
Mounting Supportsocket
Phase1 phase
Product Or Component Typeplug-in relay
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP1307068EN
Pep Verification Date2017-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %27
Width Nominal5 mm
Dv/Dt500 V/µs off-state at maximum voltage
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]24.7975
Water Pollution (M3) Operational Energy Use [B6]402.9025
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-80 °C, -20-80 °C, -20-80 °C, -20-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 9.8359923284
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2017-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C, -20-85 °C, -20-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1307068EN
Ip Degree Of ProtectionIP00
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1307068EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typeplug-in relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- random voltage switching, SCR output
- Output Voltage
- 24...280 V AC
Output Switching Modezero voltage switching
Surge Protection And Filtering Attributes
- Surge Current
- 84 A 16.6 ms80 A 20 ms
Input Attributes
- Input Current
- 15 mA
Input Impedance400 Ohm
Overview Attributes
- Device Presentation
- complete product
