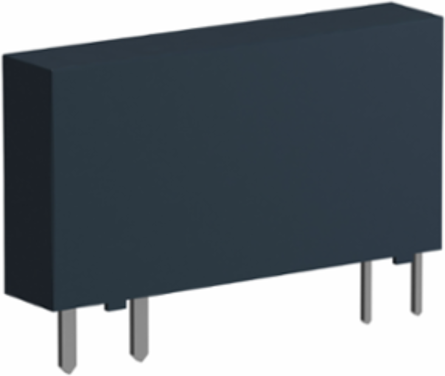

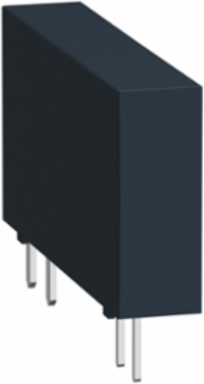

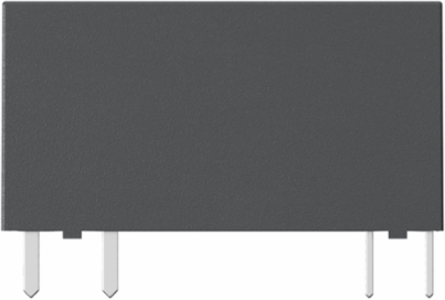

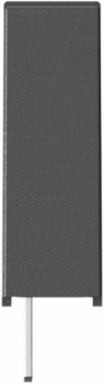

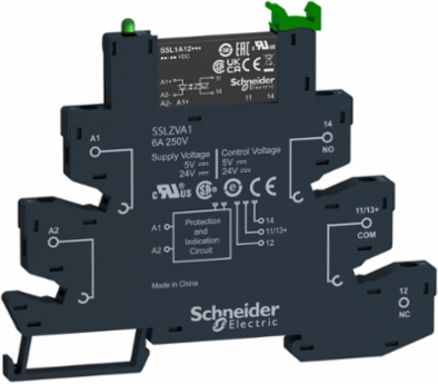

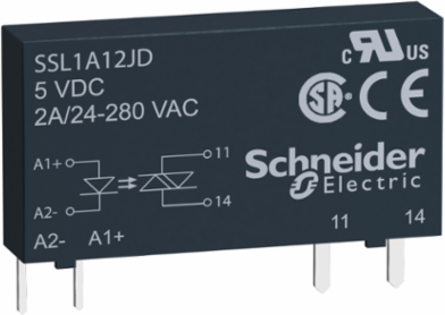

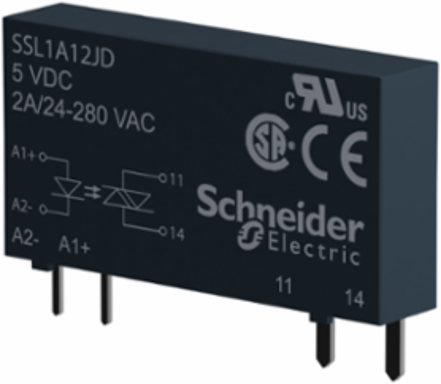

Schneider Electric SSL1A12BDR Harmony Solid State Relay, 2A, 15-30V DC Input, 24-280V AC Output, 6mm Width

  • MPN: SSL1A12BDR
  • PPN: SCH-SSL1A12BDR
  • UNSPSC: 39122333
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $22.17

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 15V to 30V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments.

    Features

    • Innovative and compact solution for industrial applications
    • Fast and precision control, high switching frequency
    • Reliable and silent switching
    • Robust in harsh environments
    • Resistance to shock and vibration
    • Free from contact contaminations
    • Maintenance free, fully electronic
    • UL 94-V0 flame retardance
    • Wide range of operating temperature from -4°F to 176°F

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina
    Depth15 mm
    Weight4 g

    Complementary Attributes

    Maximum Voltage Drop<1.5 V on-state, <1.5 V on-state<1.5 V on-state, <1.5 V on-state, <1.5 V on-state, <1.5 V on-state<1.5 V on-state, <1.5 V on-state
    Uimp Rated Impulse Withstand Voltage4.0 kV for input/output circuit IEC 62314, IEC 62314, 4.0 kV for input to case UL 508, UL 5084.0 kV for input to case IEC 623144.0 kV for input/output circuit UL 508, 4.0 kV output to case
    Line Rated Current2 A
    Maximum Switching Voltage10 V DC turn-off
    Rated Current2 A
    Uc Control Circuit VoltageDC, 15...30 V
    Absolute Maximum Voltage600 V
    Maximum Leakage Current4 mA off-state
    Minimum Switching Voltage15 V DC turn-on
    Ui Rated Insulation Voltage280 V

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electromagnetic Compatibilitysurge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2, conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV criteria B (line to line) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV criteria B (line to earth) conforming to IEC 61000-4-5, radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
    Control Circuit Voltage15...30 V
    Maximum I²T For Fusing33 A².s for 10 ms at 50 Hz, 29 A².s for 8.3 ms at 60 Hz
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.0005848752
    Carbon Footprint Of The Manufacturing Phase A1 To A30.1 kg CO2 eq., 0.0705190019
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Associated Fuse Rating2.5 A 250 V type 1
    Dielectric Strength2500 V for input/output
    Load Current0.07-2 A
    Mounting Supportsocket
    Phase1 phase
    Product Or Component Typeplug-in relay
    Response Time0.5 cycle (turn-off)0.1 ms (turn-on)
    Software VersionEIME v5.6
    Total Lifecycle Carbon Footprint10 kg CO2 eq.
    Data Sourceextrapolated product
    Width Nominal5 mm
    Nbr. Of Units In Pkg.1
    Short Circuit Current5000 A
    Functional Unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    Functional Unit Unitunité (unit)
    Recyclability Potential In %27
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC
    Certificate AgencycURus, CSA, EAC, CE, UKCA
    Carbon Footprint Of The Distribution Phase A40.0005160921, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0002619424, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B610 kg CO2 eq., 10.0602526667
    Local Publishable Date2026-08-10
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NameSSL
    Flame RetardanceV0 conforming to UL 94
    MarkingCE
    Overvoltage CategoryIII
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Solid State Relays
    ReturnabilityYes
    Sustainable PackagingNo
    Database Version2017-03

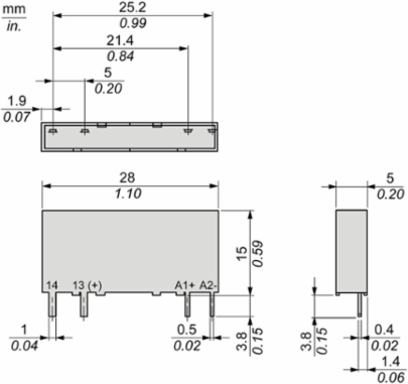

    Height Nominal28 mm
    Dv/Dt500 V/µs off-state at maximum voltage
    Customs Code8536490055
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y20

    Environment Attributes Main

    Ambient Air Temperature For Operation-20-80 °C, -20-80 °C, -20-80 °C, -20-80 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint10.1321345784
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2017-04-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-20-85 °C, -20-85 °C, -20-85 °C, -20-85 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2504008EN
    Ip Degree Of ProtectionIP00
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2504008EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Phase1 phase
    Range Of ProductHarmony Solid State Relays
    Product Or Component Typeplug-in relay

    ETIM

    ETIM 8EC002055
    ETIM 10EC002055
    ETIM 9EC002055

    Output Attributes

    Solid State Output TypeSCR output, random voltage switching
    Output Voltage24...280 V AC
    Output Switching Moderandom voltage switching

    Surge Protection And Filtering Attributes

    Surge Current84 A 16.6 ms80 A 20 ms

    Input Attributes

    Input Current6 mA
    Input Impedance2500 Ohm

    Overview Attributes

    Device Presentationcomplete product
    Harmony Solid State Relay, 2A, 15-30V DC Input, 24-280V AC Output, 6mm Width
