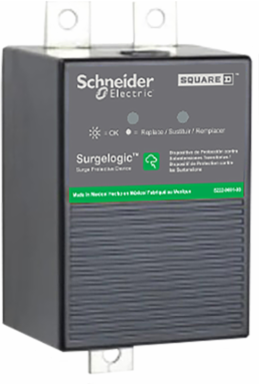

Square D MAM82 Surge protective device, Surelogic, MA replacement module, 200kA, 600Y/347V, 3 phase, 4 wire, open style
- MPN: MAM82
- UPC: 047569001802
- PPN: SCH-MAM82
CAD
$1768.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surgelogic™ Type MA Systems feature module assemblies designed to ensure continued compliance with safety standards and optimal performance specifications following surge events. This is used as a replacement module for Surgelogic™ IMA and EMA Surge Protective Devices, it ensures continued protection and performance. Being modular in design, this unit is able to provide a surge current rating of 160,000 Amps to 240,00 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. Designed for 600Y/347VAC three phase systems. This product is UL and CSA certified.
Features
- Engineered specifically as an open-style, modular replacement asset, the Schneider Electric MAM82 restores continuous transient voltage protection to your facility without requiring a complete system overhaul. It seamlessly retrofits into Schneider Electric and Square D SurgelogicTM IMA and EMA series surge protective devices (SPDs), preserving your original physical footprints and baseline installation investments.
- This transient voltage surge suppressor features a massive 200 kA surge current rating per phase alongside a 200 kA short circuit current rating (SCCR). This high-energy capacity safely diverts downstream electrical strikes and catastrophic overvoltage anomalies on critical commercial lines, maintaining operational uptime and protecting expensive machinery from premature component degradation.
- The MAM82 is precisely calibrated for 600Y/347V AC, 3-phase, 4-wire electrical networks. Featuring a 420V Maximum Continuous Operating Voltage (MCOV), it easily tolerates standard line-voltage fluctuations across heavy-duty 47 to 63 Hz operating frequencies, making it the ideal choice for sub-panels and main service entries facing dirty utility power.
- Equipped with integrated local signaling diagnostics, this surge suppression module utilizes per-phase dual LED indicators to provide instantaneous visual confirmation of system health. A steady green LED verifies normal operation, while a bright red LED signals a phase fault or depletion, removing the guesswork from preventive troubleshooting and accelerating your facility's mean time to repair (MTTR).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth13.462 cm
Important Information Attributes
- Device Short Name
- IMA, EMA
- Noise Level
- -42 dB, -42 dB
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1199908598, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0043777794, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 2 768 kg CO2 eq., 2768.2
- Local Publishable Date
- 2025-12-12
- Stocking Flag
- N
- Use Carbon Footprint
- 2768.2
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Frequency Measurement Range
- 47-63 Hz
- Phase
- 3 phase
- Product Or Component Type
- surge protection module
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 4-wire
- Pep Verification Date
- 2020-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: MEXICO
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Height Nominal
- 20.828 cm
- [Uc] Maximum Continuous Operating Voltage
- 420 V
- Accessory / Separate Part Category
- replacement accessories
- Short-circuit Protection
- 200 kA
- Package Weight(Lbs)
- 930 g
- Warranty (In Months)
- 18
- Air Pollution (M3) Operational Energy Use [B6]
- 235080
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 1.4973
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 74.013
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 423.26
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 37267
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 35029
- Water Pollution (M3) Operational Energy Use [B6]
- 136470
Local Signallingstatus LED green per phase normal operation, status LED red per phase fault
Certificate AgencyUL 1449:ed. 5, CSA C22.2 No 269.1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.659222243
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 12.8007981308
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2003014EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Energy Efficiency OptimizedFalse
Nominal Discharge Current20 kA
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSurgelogic
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint2 782 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years against direct or indirect effects of lightning or against transient overvoltages electrical equipements connected to electrical networks with 3 phases,160 kA per phase 480Y/277 V AC& 10-UL 1449:ed. 4 and UL 1283:ed. 5& 10-CSA C22.2 No 8:1986& 10-ANSI/IEEE C62.41 and ANSI/IEEE C62.45& 10-NEC 285
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh3998.064
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
Width Nominal14.734 cm
[Ue] Rated Operational Voltage600Y/347 V AC
Connections - Terminalsterminals AWG 10...AWG 2
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]2.6504
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]33704
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]2768.2
Net Use Of Fresh Water (M3) Operational Energy Use [B6]4.8925
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]35029
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2238.1
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2238.1
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2003014EN
- Nema Degree Of Protection
- open type
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-65 °C, -40-65 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint2781.7843890131
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...12000 ft
Packaging Without Single Use PlasticYes
Relative Humidity0-95 %
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Surgelogic
Product Or Component Typesurge protection module
Surge Protection And Filtering Attributes
- Surge Current
- 200 kA
Accessories
