Schneider Electric LV426940 ComPact NSXm Spreader Set of 3, 3 Poles, 27-35 mm Pitch
- MPN: LV426940
- PPN: SCH-LV426940
CAD
$681.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

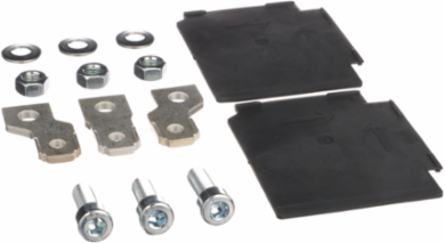

It is a set of 3 spreaders used to increase the pitch between the poles from 21 mm to 35 mm. It is used on compact NSXm and PowerPact B devices. Bares and cable lugs are attached to the end of the spreaders. These accessories are supplied with M8 screws for power connection and 2 interphase barriers.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Complementary Attributes
- Line Rated Current
- 160-160 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Location Of Connection
- downstream, upstream
- Connections - Terminals
- crimp lug upstream), crimp lug downstream)
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1915
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Conductor Material
- copper
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- interphase barriers
- Range
- ComPact
- Returnability
- Yes
- Accessory / Separate Part Type
- connection accessories
- Package Weight(Lbs)
- 172.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Tightening Torque9-9 N.m upstream, 9-9 N.m downstream
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Exclusion RationaleProduct/component not in scope – not electric/electronic device
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch35 mm
Mounting Modefixed
Poles Description3P
Product Or Component Typespreader
Quantity Per Setset of 1
Range Of ProductComPact NSXm
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- spreader
- Range Of Product
- ComPact NSXm
Provided Equipmentinterphase barriers
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
