Square D PK15GTAL QO Loadcentre Ground Bar 207 mm, AWG 14-4 Copper/Aluminum, Green Premium
- MPN: PK15GTAL
- UPC: 785901440871
- PPN: SCH-PK15GTAL
CAD
$70.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

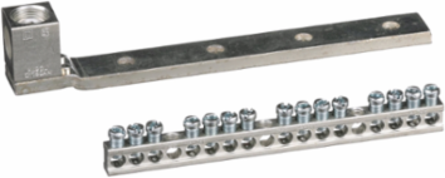

By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 16 number of circuits which accepts 15-(1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum and 1-(1) 1-4/0AWG aluminum or copper.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth0.312 in
Physical Attributes

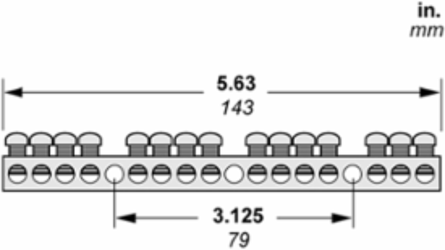

- Bar Length
- 207 mm
Complementary Attributes
- Maximum Length Of Segment
- 80 mm
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Tightening Torque
- 25 lb.in, 12 AWG...10 AWG, aluminium30 lb.in, mounting screw 30 lb.in, 20 lb.in, 14 AWG...10 AWG, copper20 lb.in, 12 AWG...10 AWG, aluminium35 lb.in, 6 AWG...4 AWG25 lb.in, 8 AWG, 25 lb.in, 14 AWG...12 AWG, copper
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- 2 screw
- Returnability
- Yes
- Height Nominal
- .437 in
- Package Weight(Lbs)
- 145 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...4 AWG copper12 AWG...4 AWG aluminium4 AWG...1 AWG aluminium/copper
Number Of Connectors16
Product Or Component Typebar
Range Of ProductQO
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- bar
- Range Of Product
- QO
Provided Equipment2 screw
ETIM
- ETIM 8
- EC000329
ETIM 9EC000329
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
