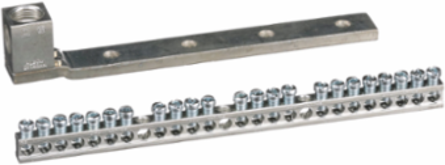

Square D PK23GTAL QO Loadcentre Ground Bar with Copper Lug, 240 mm Length, 24 Connectors
- MPN: PK23GTAL
- UPC: 785901440895
- PPN: SCH-PK23GTAL
CAD
$80.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 24 number of circuits which accepts 23-(1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum and 1-(1) 1-4/0AWG..
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth0.312 in
Physical Attributes

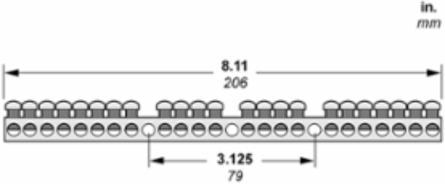

- Bar Length
- 240 mm
Complementary Attributes
- Maximum Length Of Segment
- 80 mm
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Tightening Torque
- 25 lb.in, 12 AWG...10 AWG, aluminium30 lb.in, mounting screw 30 lb.in, 20 lb.in, 14 AWG...10 AWG, copper20 lb.in, 12 AWG...10 AWG, aluminium35 lb.in, 6 AWG...4 AWG25 lb.in, 8 AWG, 25 lb.in, 14 AWG...12 AWG, copper
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 14 AWG...4 AWG copper12 AWG...4 AWG aluminium4 AWG...1 AWG aluminium/copper
- Number Of Connectors
- 24
- Product Or Component Type
- bar
- Range Of Product
- QO
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2436
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Provided Equipment2 screw
ReturnabilityYes
Height Nominal.437 in
Package Weight(Lbs)172 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- bar
- Range Of Product
- QO
Provided Equipment2 screw
ETIM
- ETIM 8
- EC000329
ETIM 9EC000329
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
