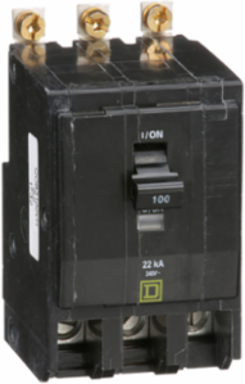

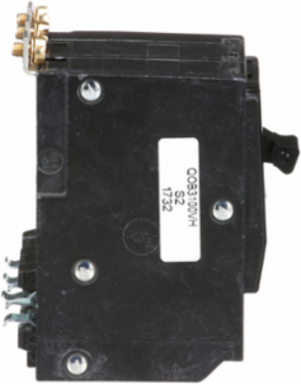

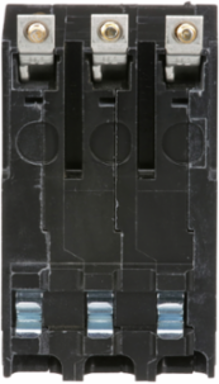

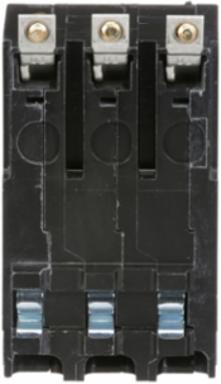

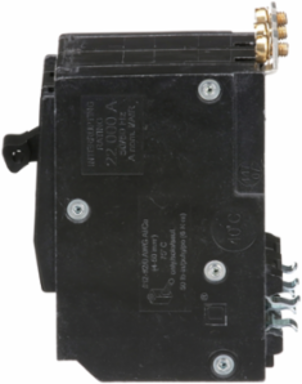

Square D QOB3100VH Mini Circuit Breaker 100A 3 Pole Bolt-On Mount 22kA 120/240VAC
Square D QOB3100VH Mini Circuit Breaker 100A 3 Pole Bolt-On Mount 22kA 120/240VAC
- MPN: QOB3100VH
- UPC: 785901054801
- PPN: SCH-QOB3100VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$557.14/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Interrupt Rating
- 22 kA 120/240 V AC 50/60 Hz
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Bolt-on
- Electrical Connection
- Box lugs
- Tightening Torque
- 5.6 N·m

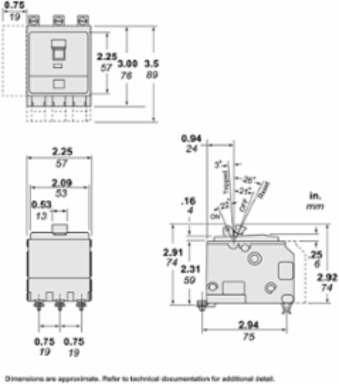

- Width
- 57 mm (2.24 in)
- Net Weight
- 0.494 kg (1.09 lb)
- Compliance
- UL Listed, CSA Certified, Rohs Compliant, Halogen Free, Mercury Free
- Range
- QO
Current Rating100 A
Number of Poles3
Number of Panel Spaces3
Wire SizeAWG 4 to AWG 2/0 copper or aluminum
Height89 mm (3.50 in)
Depth74 mm (2.91 in)
Circuit Breaker TypeStandard
Ambient Rating40 °C (104 °F)
Product TypeMiniature circuit-breaker
