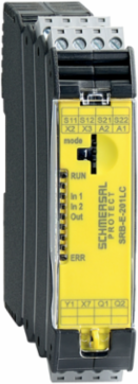

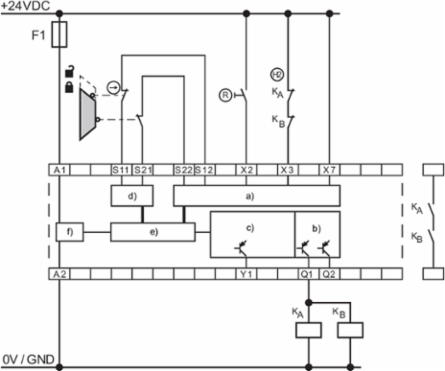

Schmersal 103009970 Safety Monitoring Module, IP54, 98 mm Height, 24 VDC, 2 Safety Outputs 2 A

MPN: 103009970
PPN: SCM-103009970

$317.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safety Monitoring Module, IP54, 98 mm Height, 24 VDC, 2 Safety Outputs 2 A

Features

Plug-in screw terminals with coding
STOP 0 Function
1 oder 2-channel control
Start button / Auto-start
2 Safety outputs 2 A
1 Signalling output

Documentation & Downloads

Specifications

Key Specifications

Width	22.5 mm
Depth	115 mm

Height	98 mm

Electrical data

Operating voltage	24 VDC -20 % / +20 %
Rated operating voltage	24 VDC
Rated AC voltage for controls at DC minimum	19.2 VDC
Electrical power consumption	2.4 W
Drop-out delay in case of emergency, typically	10 ms
Pull-in delay at RESET, typically	150 ms

Ripple voltage	10 %
Operating current	100 mA
Rated control voltage at DC, maximum	28.8 VDC
Drop-out delay in case of power failure, typically	10 ms
Pull-in delay at automatic start, maximum, typically	150 ms
Switching frequency, maximum	1 Hz

Mechanical data - Dimensions

Width	22.5 mm
Depth	115 mm

Height	98 mm

Ambient conditions - Insulation values

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	2

Overvoltage category	III

Electrical data - Digital Output

Voltage, Utilisation category DC-12	24 VDC

Current, Utilisation category DC-12	0.1 A

General data - Features

Stop-Category	0
Wire breakage detection	Yes
Removable Terminals	Yes
Feedback circuit	Yes
Reset edge detection	Yes
Integral system diagnostics, status	Yes
Number of LEDs	5
Number of normally open (NO)	1
Number of signalling outputs	1

Electronic Fuse	Yes
Cross-circuit detection	Yes
Start input	Yes
Automatic reset function	Yes
Earth connection detection	Yes
Integral system diagnostics, error code	Yes
Number of normally closed (NC)	2
Number of safety digital outputs, Stop 0	2

General data

Standards	EN IEC 62061 \| EN ISO 13849-1 \| EN IEC 60947-5-1 \| EN IEC 60947-5-3 \| EN IEC 60947-5-5 \| EN IEC 61508 \| EN IEC 60204-1 \| EN IEC 60947-1
Enclosure material	Glass-fibre reinforced thermoplastic, ventilated

Climatic stress	EN 60068-2-78
Gross weight	130 g

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 62061 \| EN IEC 61508
Category	4
PFD value	2.42 x 10⁻⁵
Mission time	20 Year(s)

Performance Level, up to	e
PFH value	2.66 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Electrical data - Safety digital outputs

Voltage drop U	0.5 V
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC

Leakage current I	1 mA
Current, Utilisation category DC-12	2 A
Current, Utilisation category DC-13	2 A

Other data

Note (applications)	Safety sensor \| hinged safety guard \| Emergency-Stop button \| Pull-wire emergency stop switches \| Safety light curtain

Ambient conditions

Degree of protection of the enclosure	IP40
Degree of protection of clips or terminals	IP20
Storage and transport temperature, minimum	-40 °C
Resistance to vibrations	10 ... 55 Hz, Amplitude 0.35 mm

Degree of protection of the mounting space	IP54
Ambient temperature	-25 ... +60 °C
Storage and transport temperature, maximum	+85 °C
Restistance to shock	30 g / 11 ms
