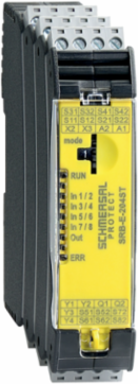

Schmersal 103009973 Safety-Monitoring Module 24 VDC, 4 Signalling Outputs, 22.5 mm Width
- MPN: 103009973
- PPN: SCM-103009973
CAD
$524.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

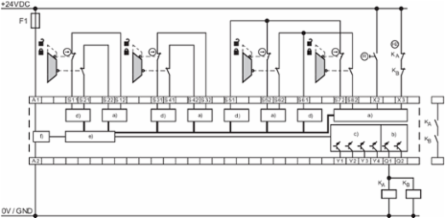

Description
Safety-Monitoring Module 24 VDC, 4 Signalling Outputs, 22.5 mm Width
Features
- Plug-in screw terminals with coding
- STOP 0 Function
- Monitoring of 4 sensors
- Start button / Auto-start
- 2 Safety outputs
- 4 Signalling outputs
Documentation & Downloads
Specifications
Key Specifications
- Width
- 22.5 mm
- Depth
- 115 mm
Height98 mm
Electrical data
- Operating voltage
- 24 VDC -20 % / +20 %
- Rated operating voltage
- 24 VDC
- Rated AC voltage for controls at DC minimum
- 19.2 VDC
- Electrical power consumption
- 3 W
- Drop-out delay in case of emergency, typically
- 10 ms
- Pull-in delay at RESET, typically
- 150 ms
Ripple voltage10 %
Operating current125 mA
Rated control voltage at DC, maximum28.8 VDC
Drop-out delay in case of power failure, typically10 ms
Pull-in delay at automatic start, maximum, typically150 ms
Switching frequency, maximum1 Hz
Mechanical data - Dimensions
- Width
- 22.5 mm
- Depth
- 115 mm
Height98 mm
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 0.8 kV
- Degree of pollution
- 2
Overvoltage categoryIII
Electrical data - Digital Output
- Voltage, Utilisation category DC-12
- 24 VDC
Current, Utilisation category DC-120.1 A
General data - Features
- Stop-Category
- 0
- Wire breakage detection
- Yes
- Removable Terminals
- Yes
- Feedback circuit
- Yes
- Reset edge detection
- Yes
- Integral system diagnostics, status
- Yes
- Number of LEDs
- 7
- Number of normally open (NO)
- 4
- Number of signalling outputs
- 4
Electronic FuseYes
Cross-circuit detectionYes
Start inputYes
Automatic reset functionYes
Earth connection detectionYes
Integral system diagnostics, error codeYes
Number of normally closed (NC)8
Number of safety digital outputs, Stop 02
General data
- Standards
- EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
- Enclosure material
- Glass-fibre reinforced thermoplastic, ventilated
Climatic stressEN 60068-2-78
Gross weight150 g
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 62061 | EN IEC 61508
- Category
- 4
- PFD value
- 2.42 x 10⁻⁵
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value2.66 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - Safety digital outputs
- Voltage drop U
- 0.5 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Leakage current I1 mA
Current, Utilisation category DC-122 A
Current, Utilisation category DC-132 A
Other data
- Note (applications)
- Safety sensor | hinged safety guard | Emergency-Stop button | Pull-wire emergency stop switches | Safety light curtain
Ambient conditions
- Degree of protection of the enclosure
- IP40
- Degree of protection of clips or terminals
- IP20
- Storage and transport temperature, minimum
- -40 °C
- Resistance to vibrations
- 10 ... 55 Hz, Amplitude 0.35 mm
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw connection, plug-in
- Cable section, minimum
- 0.25 mm²
- Tightening torque of Clips
- 0.5 Nm
Terminal designationsIEC/EN 60947-1
Cable section, maximum2.5 mm²
Mechanical data
- Mounting
- Snaps onto standard DIN rail to EN 60715
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
Electrical data - Digital inputs
- Conduction resistance, maximum
- 40 Ω
Status indication
- Indicated operating states
- Internal operating voltage U | Baustein-Status | Fault codes
