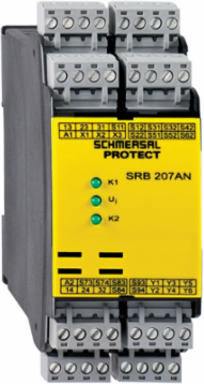

Schmersal 101170117 Safety Monitoring Module, 24V, IP54, 6 Signalling Outputs, 100 mm Height

  • MPN: 101170117
  • PPN: SCM-101170117

CAD

$618.37

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Safety Monitoring Module, 24V, IP54, 6 Signalling Outputs, 100 mm Height

Features

  • Suitable for the signal processing of outputs with contact sensors
  • 2 safety contacts, STOP 0
  • 6 Signalling outputs
  • Multi-evaluation of up to 6 safety guards

Documentation & Downloads

Specifications

Key Specifications

Width
45 mm
Depth
121 mm
Height100 mm

Electrical data - Relay outputs (auxiliary contacts)

Switching capacity, maximum
24 VDC
Switching capacity, maximum2 A

Electrical data

Frequency range
50 Hz | 60 Hz
Ripple voltage
10 %
Rated operating voltage
24 VDC
Rated control voltage at AC 50 Hz, maximum
26.4 VAC
Rated control voltage at AC 60 Hz, maximum
26.4 VAC
Rated control voltage at DC, maximum
28.8 VDC
Contact resistance, maximum
0.1 Ω
Drop-out delay in case of power failure, typically
80 ms
Pull-in delay at automatic start, maximum, typically
100 ms
Material of the contacts, electrical
AgSn0. self-cleaning, positive drive
Operating voltage24 VAC -15 % / +10 % | 24 VDC -10 % / +20 %
Rated operating voltage24 VAC
Rated AC voltage for controls, 50 Hz, minimum20.4 VAC
Rated AC voltage for controls, 60 Hz, minimum20.4 VAC
Rated AC voltage for controls at DC minimum20.4 VDC
Electrical power consumption3 W
Note (Contact resistance)in new state
Drop-out delay in case of emergency, typically20 ms
Pull-in delay at RESET, typically20 ms

Note

Note (General)
Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.

Mechanical data - Dimensions

Width
45 mm
Depth
121 mm
Height100 mm

Ambient conditions - Insulation values

Rated impulse withstand voltage U
4 kV
Degree of pollution
2
Overvoltage categoryIII

Electrical data - Digital Output

Voltage, Utilisation category DC-12
24 VDC
Current, Utilisation category DC-120.1 A

General data - Features

Stop-Category
0
Wire breakage detection
Yes
Removable Terminals
Yes
Feedback circuit
Yes
Reset edge detection
Yes
Integral system diagnostics, status
Yes
Number of LEDs
3
Number of Snap-in contacts, maximum
6
Number of signalling outputs
6
Electronic FuseYes
Cross-circuit detectionYes
Start inputYes
Automatic reset functionYes
Earth connection detectionYes
Number of auxiliary contacts1 | 7
Number of safety contacts2
Number of Snap-in contacts, minimum1

General data

Standards
EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1
Enclosure material
Glass-fibre reinforced thermoplastic, ventilated
Climatic stressEN 60068-2-78
Gross weight480 g

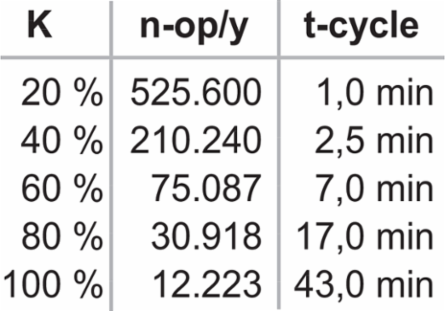

Safety classification

Standards
EN IEC 60947-5-1 | EN IEC 61508
Category
3
PFH value
2.00 x 10⁻⁸ /h
Mission time
20 Year(s)
Performance Level, up toe
Diagnostic Coverage (DC) Level> 99 %
Safety Integrity Level (SIL), suitable for applications in3
Common Cause Failure (CCF), minimum65

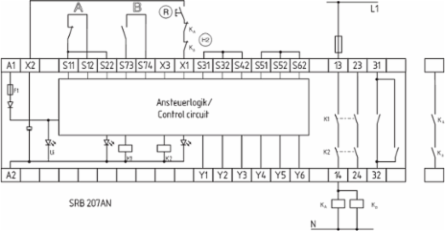

Wiring example

Note (Wiring diagram)
The wiring diagram is shown with guard doors closed and in de-energised condition. | The feedback circuit monitors the position of the contactors K3 and K4. | Automatic start: The automatic start is programmed by connecting the feedback circuit to the terminals X1/X3. If the feedback circuit is not required, establish a bridge. | To secure 6 guard doors up to PL d and Category 3 | Monitoring 6 guard door(s), each with a magnetic safety sensor of the BNS range | Start button (S) with edge detection

Other data

Note (applications)
Safety sensor | Guard system | Emergency-Stop button | Pull-wire emergency stop switches

Ambient conditions

Degree of protection of the enclosure
IP40
Degree of protection of clips or terminals
IP20
Storage and transport temperature, minimum
-40 °C
Resistance to vibrations
10...55 Hz, Amplitude 0.35 mm, ± 15 %
Degree of protection of the mounting spaceIP54
Ambient temperature-25 ... +45 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms

Mechanical data - Connection technique

Termination
rigid or flexible | Screw terminals M20 x 1.5
Cable section, minimum
0.25 mm²
Tightening torque of Clips
0.6 Nm
Terminal designationsIEC/EN 60947-1
Cable section, maximum2.5 mm²

Electrical data - Safe relay outputs

Voltage, Utilisation category AC-15
230 VAC
Voltage, Utilisation category DC-13
24 VDC
Switching capacity, minimum
10 VDC
Switching capacity, maximum
250 VAC
Current, Utilisation category AC-156 A
Current, Utilisation category DC-136 A
Switching capacity, minimum10 mA
Switching capacity, maximum8 A

Mechanical data

Mechanical life, minimum
10,000,000 Operations
MountingSnaps onto standard DIN rail to EN 60715

Approvals - Standards

Certificates
cULus

Electrical data - Electromagnetic compatibility (EMC)

EMC rating
EMC-Directive

Electrical data - Digital inputs

Conduction resistance, maximum
40 Ω

Status indication

Indicated operating states
Position relay K2 | Position relay K1 | Internal operating voltage U
