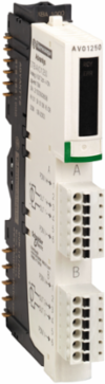

Schneider Electric STBAVO1250K Standard Analog Output Kit, 2 Outputs, +/- 10V, IP20 Rating
- MPN: STBAVO1250K
- PPN: SCH-STBAVO1250K
CAD
$473.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 11bit + sign and 12bit output resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 45mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBAVI1270 module and STBXBA1000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, United States |
|---|
| Depth | 70 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Addressing Requirement | 2 non-adjacent input bytes (module and channel status diagnostics), 2 output words |
| Kit Composition | STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBAVO1250 module, STBXBA1000 base |
| Integral Linearity | +/- 0.1 %FS, +/- 0.1 %FS |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Bearing Track Assembly Possible | true |
| Fallback Status | user configurable standard NIMsstate 0 basic NIMs |
| Hot Swapping Fallback | yes for standard NIMs |
| Local Signalling | 1 LED green module status (RDY)1 LED red module error (ERR) |
| Network Type | DC |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Returnability | No |
| Supply | power distribution module |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Temperature Drift | +/-0.01 %/°C+/-0.01 %/°C |
| Update Time | 25 ms |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | true |
| Height Nominal | 13.9 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Rack-assembly Possible | true |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Data Format | IEC 61131-2, EN 61131-2 |
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)5 gn 58-150 Hz) on 35 mm DIN rail, 3 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Certificate Agency | UL, CSA, FM Class 1 Division 2 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Analogue Output Current2 | 0.005 A |
| Cold Swapping | yes |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Marking | CE |
| Overvoltage Category | II |
| Product Or Component Type | standard analog output kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Response Time | 3 ms |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Typical Current Consumption | 45 mA 5 V DC for logic bus |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | true |
| Differential Linearity | monotonic |
| Width Nominal | 128.3 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 135.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | power distribution module STBPDT3100/3105, mounting base STBXBA1000 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | standard analog output kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|
| ETIM 9 | EC001596 |
|---|
Output Attributes
| Analogue Output Type | voltage +/- 10 V, voltage 0...10 V |
|---|---|
| Analogue Output Resolution | 12 bits |
| Analogue Output Number | 2 |
|---|---|
| Output Protection Type | short-circuit protection |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Number | 0 |
|---|
| Analogue Input Resolution | 12 bits |
|---|
