Schneider Electric LUCL38FU TeSys Ultra Magnetic Control Unit, 9.5-38A, 690V, 3-Phase
Schneider Electric LUCL38FU TeSys Ultra Magnetic Control Unit, 9.5-38A, 690V, 3-Phase
- MPN: LUCL38FU
- PPN: SCH-LUCL38FU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$299.74/ EA
Description

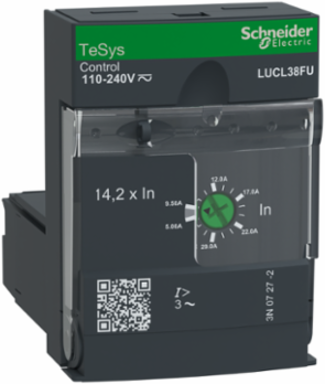

TeSys U magnetic control unit to be inserted in power bases LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 18.5kW@400V. It provides short circuit protection to motors with a rated current In 9.5-38A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Ambient Air Temperature For Storage
- -40-85 °C
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2
- Fire Resistance
- 960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4
Resistance To Radiated Fields10 V/m 3 IEC 61000-4-3
Shock Resistance10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
Immunity To Microbreaks3 ms
Ip Degree Of ProtectionIP20 front panel and wired terminals IEC 60947-1 || IP20 other faces IEC 60947-1 || IP40 front panel outside connection zone IEC 60947-1
Protective TreatmentTH IEC 60068
Operating Altitude2000 m
Immunity To Radioelectric Fields10 V IEC 61000-4-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP080204EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI100414
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Product Certifications
- CE || EAC || ATEX
- Net Weight
- 0.135 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-6-2
- Typical Current Consumption
- 280 mA 110...240 V AC I maximum while closing with LUB32 || 280 mA 110...240 V AC I maximum while closing with LUB38 || 280 mA 110...220 V DC I maximum while closing with LUB32 || 280 mA 110...220 V DC I maximum while closing with LUB38 || 25 mA 110...240 V AC I rms sealed with LUB32 || 25 mA 110...240 V AC I rms sealed with LUB38 || 25 mA 110...220 V DC I rms sealed with LUB32 || 25 mA 110...220 V DC I rms sealed with LUB38
- Compatibility Code
- LUCL
- Operating Time
- 35 ms opening with LUB38 control circuit || 50 ms closing with LUB38 control circuit
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1 || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- Heat Dissipation
- 3-3 W control circuit with LUB38
Height66 mm
Fixing Modeplug-in (front face)
StandardsEN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier
[Ui] Rated Insulation Voltage690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
Control Circuit Voltage Limits88...264 V AC 110...240 V in operation || 88...242 V DC 110...220 V in operation || 55 V AC 110...240 V drop-out || 55 V DC 110...220 V drop-out
Width45 mm
Depth60 mm
Specifications
- [Uc] Control Circuit Voltage
- 110...240 V AC || 110...220 V DC
- Range Of Product
- TeSys Ultra
- Product Or Component Type
- magnetic control unit
- Motor Power Kw
- 18.5 kW 400...440 V AC 50/60 Hz || 18.5 kW 500 V AC 50/60 Hz || 22 kW 690 V AC 50/60 Hz
- Utilisation Category
- AC-43
- Tripping Threshold
- 14.2 x Ir +/- 20 %
- Product Specific Application
- protection of variable speed drive or soft startsoft stop unit
- Load Type
- 3-phase motor self-cooled
- Device Short Name
- LUCL
[Ue] Rated Operational Voltage690 V AC
Thermal Protection Adjustment Range9.5-38 A
Product NameTeSys Ultra
RangeTeSys
Function Availableshort-circuit protection || manual reset
Product Compatibilitypower base LUB38 || power base LUB380 || reversing contactor breaker LU2B38FU
Network Frequency40...60 Hz
Device Applicationmotor control || motor protection
