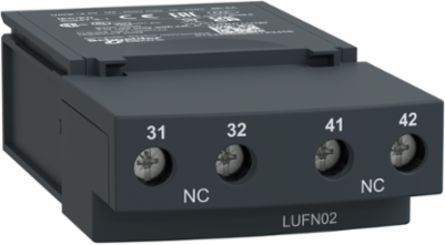

Schneider Electric LUFN02 TeSys U Auxiliary Contacts 2NC 250VAC/DC 5A

MPN: LUFN02
PPN: SCH-LUFN02
UNSPSC: 39121522

$100.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 2NC instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

Features

Auxiliary signaling contact block for TeSys U starter controllers
To be inserted in the provided location of the power base
Modular, plug & play structure helps you to perform quick maintenance
Direct access to detailed information for every motor starter of your installation
Advanced motor management system

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Ue Rated Operational Voltage	<= 250 V AC, <= 250 V AC, <= 250 V DC, <= 250 V DC<= 250 V AC, <= 250 V AC, <= 250 V DC
Minimum Switching Current	5 mA

Ui Rated Insulation Voltage	250 V CSA, 250 V IEC 60947-5-1, 250 V UL
Minimum Switching Voltage	17 V

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Applicability	Finished product
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	LUFN
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8538908180
Warranty In Months	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-06-27
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2025
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	LUFN
Energy Efficiency Optimized	False
Product Or Component Type	auxiliary contact
Range Of Product	TeSys Ultra
Sustainable Packaging	Yes
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	5 A

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
