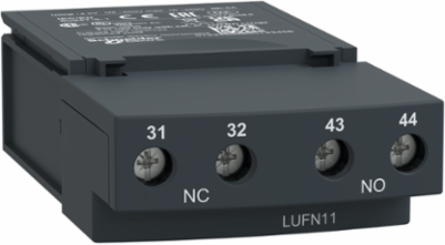

Schneider Electric LUFN11 TeSys U Auxiliary Contacts Module, 1NO + 1NC, 250V, 5A Maximum
- MPN: LUFN11
- PPN: SCH-LUFN11
CAD
$96.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 1NO+1NC instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Features
- Equipped with 1 NO (Normally Open) and 1 NC (Normally Closed) instantaneous contacts, this block delivers reliable power pole status signaling. It provides real-time feedback on whether the motor is running or stopped regardless of the motor s rotation direction making it easy to integrate secondary control loops, pilot lights, or PLC inputs.
- This highly versatile contact block operates smoothly across a wide range of control voltages up to 250V AC or DC, with a conventional free air thermal current ($I_{th}$) rated at 5A. It features a low minimum switching threshold of 17V and 5mA, ensuring glitch-free signaling performance even when connected to low-power, high-sensitivity digital control inputs.
- When paired with a compatible TeSys U power base, this Green Premium compliant component carries full global industrial certifications including UL, CSA, IEC 60947-5-1, CCC, and Marine approvals. This ensures absolute compliance with strict electrical codes and provides a reliable, RoHS/REACh-free footprint inside your industrial automation assemblies.
- Built with a plug-and-play modular design, the module snaps directly into the power base without requiring special tools or complex disassembly. The clear, accessible screw clamp terminal connections ensure secure, vibration-resistant wiring, minimizing your panel building time and dramatically reducing future maintenance downtime.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- <= 250 V AC/DC
- Conventional Free Air Thermal Current
- 5 A
- Minimum Switching Current
- 5 mA
- Net Weight
- 0.05 kg (0.11 lb)
- Range
- TeSys
- RoHS Compliance
- Compliant, Exemption Applies
- Mercury Free
- Yes
- China RoHS Regulation
- X
- Warranty
- 18 months
Rated Insulation Voltage250 V CSA, IEC 60947-5-1, UL
Minimum Switching Voltage17 V
Auxiliary Contact Composition1 NO + 1 NC
Product TypeAuxiliary Contact
Device Short NameLUFN
REACH ComplianceFree of SVHC
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP111254EN
Country of OriginFrance
