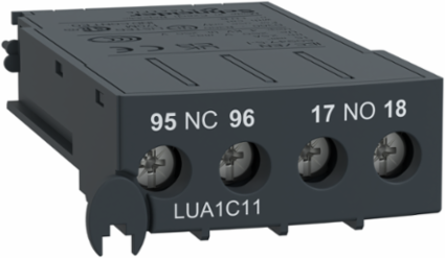

Schneider Electric LUA1C11 TeSys U Auxiliary Contact Block, 1NO + 1NC, 250V AC/DC, Mercury Free
- MPN: LUA1C11
- PPN: SCH-LUA1C11
CAD
$64.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 1NO contact for open/close status (OF contact) and 1NC contact for tripping status (SD contact), rated up to 5A 250V AC/DC. To be inserted in the provided location of the power base.
Features
- This specialized auxiliary signaling contact block is engineered to deliver precise status feedback from your motor starter assembly. It features a dual-contact configuration providing 1 NO contact to track open/close (OF) operation status, alongside 1 NC contact dedicated strictly to remote fault and trip (SD) signaling when the starter knob drops out of the ready position.
- Purpose-built for the Schneider Electric TeSys Ultra (TeSys U) intelligent motor management platform, this block is natively compatible with standard LUB12, LUB32, LUB120, and LUB320 power bases. It slides seamlessly into a dedicated, internal factory-molded slot inside the main power base without blocking other external communication accessories.
- The block relies on a tool-free, modular plug-and-play architecture that simplifies field deployment and control panel assembly. Maintenance technicians can drop the module straight into the pre-configured base cavity, vastly shortening commissioning windows and reducing wiring labor during system overhauls.
- The block features a rated insulation voltage of 250 V and carries full certification conforming to CSA, UL, and IEC 60947-5-1 standards. These credentials ensure full code compliance for industrial panels across Canada, guaranteeing reliable isolation performance in highly regulated multi-motor automation setups.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, Czechia, France, Mexico, United States
Complementary Attributes
- Minimum Switching Current
- 5 mA
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Signalling Function
- fault signalling, indicating rotary knob in ready position
- [Ui] Rated Insulation Voltage
- 250 V CSA, 250 V IEC 60947-5-1, 250 V UL
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LUA1
- Energy Efficiency Optimized
- False
- Product Or Component Type
- auxiliary contact
- Range Of Product
- TeSys Ultra
- Sustainable Packaging
- No
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage<= 250 V AC, <= 250 V AC, <= 250 V DC, <= 250 V DC<= 250 V AC, <= 250 V AC, <= 250 V DC
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLUA1
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminalsscrew clamp terminals
Package Weight(Lbs)24.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- auxiliary contact
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
