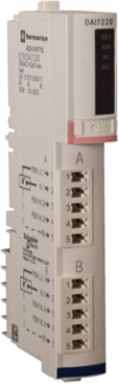

Schneider Electric STBDAI7220K Standard Digital Input Kit 230V AC, 2 Inputs, IP20 Protection

MPN: STBDAI7220K
PPN: SCH-STBDAI7220K
UNSPSC: 32151705

$137.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This digital input kit from Schneider Electric is designed to enhance automation and control systems with its reliable performance and ease of integration. Featuring two inputs and operating at 230V AC, it allows for seamless connection and monitoring of various devices within a programmable logic controller (PLC) setup. With an IP20 protection rating, this module is well-suited for indoor applications, ensuring durability and performance in demanding environments. Whether you're expanding your existing system or embarking on a new project, this kit provides the necessary reliability and functionality to streamline your operations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Depth	65.1 mm

Important Information Attributes

Current State 1 Guaranteed	>= 4 mA, >= 4 mA, >= 4 mA, >= 4 mA
Vibration Resistance	+/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Current State 0 Guaranteed	<= 2 mA<= 2 mA
Front Installation Possible	false
Isolation Between Channels And Bus	1780 Vrms for 1 minute
Marking	CE
Optical Interface Present	false
Product Availability	Non-Stock - Not normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon STB distributed I/O solution
Shock Resistance	30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Typical Current Consumption	40 mA 5 V DC for logic bus
Voltage State 1 Guaranteed	at state 1 159...265 V
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Digital Outputs Configurable	false
System Accessory	true
Short Circuit Protection Outputs Present	false
Supply Voltage Ac 60 Hz	230-230 V
Height Nominal	18.4 mm
Silcl Acc. To En 62061	false
Supporting Protocol For Tcp/Ip	true
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Performance Level According To En Iso 13849 1	none
Supporting Protocol For As Interface Safety At Work	false
Warranty In Months	18

Kit Composition	STBXTS1110, 5-terminal screw type connector, STBDAI7220 module, STBXTS2110, 5-terminal spring clamp connector, STBXBA2000 base
Certificate Agency	CSA, UL, FM Class 1 Division 2
Local Publishable Date	2026-01-12
Device Type	Automation - Distributed inputs/ouputs
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Bearing Track Assembly Possible	false
Electrical Connection	screw terminal
Hot Swapping Fallback	yes for standard NIMs
Local Signalling	1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (IN1 to IN2)1 LED (red) for module error (ERR)
Network Type	AC/DC
Power Supply Type	power distribution module
Product Or Component Type	standard digital input kit
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	No
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	true
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	true
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Voltage State 0 Guaranteed	0...40 V at state 0
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	true
Digital Inputs Configurable	false
Supply Voltage Ac 50 Hz	230-230 V
Time Delay At Signal Change	0.925-1.35 ms
Width Nominal	125 mm
Supporting Protocol For Ethernet/Ip	true
Wall Mounting/Direct Mounting Possible	false
Customs Code	8536908585
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For Data Highway	false

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-60 °C without derating)
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Product Compatibility	power distribution module STBPDT2100/2105, I/O base STBXBA2000
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % 60-60 °C without condensation

General Attributes

Product Or Component Type	standard digital input kit

Range Of Product	Modicon STB distributed I/O solution

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Discrete Input Number	type 1 at 230 V AC, 2
Input Protection Type	reverse polarity protection, short-circuit and automatic overload protection, power protection integrated fuse on PDM time lag 5 A
Response Time On Input	1.5 ms (off to on), 1.5 ms (on to off)
Discrete Input Voltage Type	AC
