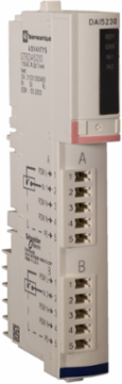

Schneider Electric STBDAI5230K Modicon STB Standard Digital Input Kit, 115 V AC, 2 Inputs, IP20
- MPN: STBDAI5230K
- PPN: SCH-STBDAI5230K
- UNSPSC: 32151601
CAD
$137.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's Modicon STB Standard Digital Input Kit is an essential component designed to integrate seamlessly into your automation and control systems. Operating at 115 V AC, this kit provides two reliable digital inputs, enhancing your system's capacity for data acquisition. With an IP20 rating, it ensures protection against solid foreign objects, making it suitable for various industrial environments where reliable operation is critical. This digital input kit is a versatile solution for those looking to optimize their PLC and HMI configurations while maintaining high standards of performance.
Features
- Compatible with various Modicon PLCs
- Supports multiple input types
- Provides accurate and timely data from field device
- Designed for robust performance in various industrial environments
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
| Depth | 65.1 mm |
|---|
Important Information Attributes
| Current State 1 Guaranteed | >= 4 mA, >= 4 mA, >= 4 mA, >= 4 mA |
|---|---|
| Local Signalling | 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (IN1 to IN2), LED (red) for module error (ERR) |
| Current Supplied By Sensor | <= 60 mA per channel, <= 60 mA per channel |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Current State 0 Guaranteed | <= 2 mA<= 2 mA |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1780 Vrms for 1 minute |
| Network Type | AC/DC |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Type | input protection by resistor limited |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | No |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | true |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | true |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Voltage State 0 Guaranteed | 0...20 V at state 0 |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Digital Inputs Configurable | false |
| Supply Voltage Ac 50 Hz | 115-115 V |
| Time Delay At Signal Change | 0.925-1.35 ms |
| Width Nominal | 125 mm |
| Supporting Protocol For Ethernet/Ip | true |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For Data Highway | false |
| Kit Composition | STBXTS2110, 5-terminal spring clamp connector, STBXBA2000 base, STBXTS1110, 5-terminal screw type connector, STBDAI5230 module |
|---|---|
| Vibration Resistance | +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz) |
| Certificate Agency | CSA, FM Class 1 Division 2, UL |
| Local Publishable Date | 2026-01-12 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Bearing Track Assembly Possible | false |
| Electrical Connection | screw terminal |
| Hot Swapping Fallback | yes for standard NIMs |
| Marking | CE |
| Optical Interface Present | false |
| Power Supply Type | power distribution module |
| Product Or Component Type | standard digital input kit |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Typical Current Consumption | 40 mA 5 V DC for logic bus |
| Voltage State 1 Guaranteed | at state 1 74...132 V |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Digital Outputs Configurable | false |
| System Accessory | true |
| Short Circuit Protection Outputs Present | false |
| Supply Voltage Ac 60 Hz | 115-115 V |
| Height Nominal | 18.4 mm |
| Silcl Acc. To En 62061 | false |
| Supporting Protocol For Tcp/Ip | true |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Performance Level According To En Iso 13849 1 | none |
| Supporting Protocol For As Interface Safety At Work | false |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | I/O base STBXBA2000, power distribution module STBPDT2100/2105 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | standard digital input kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Frequency | 50 Hz (47-63 Hz), 60 Hz |
|---|---|
| Discrete Input Voltage | 0...20 Vtype 1, 74...132 Vtype 1 |
| Input Voltage Limits | 0...20 V, 74...132 V |
| Discrete Input Voltage Type | AC |
| Discrete Input Number | type 1 at 115 V AC, 2 |
|---|---|
| Input Protection Type | power protection integrated fuse on PDM time lag 10 A, input protection resistor-limited |
| Response Time On Input | 1.5 ms (off to on), 1.5 ms (on to off) |
